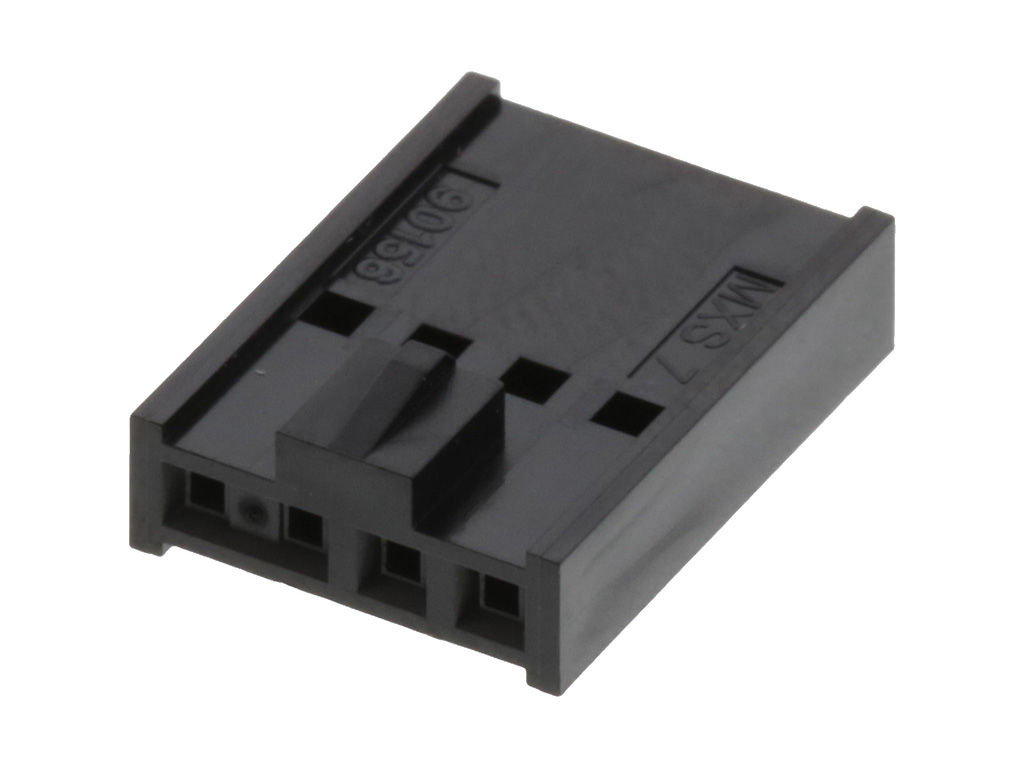

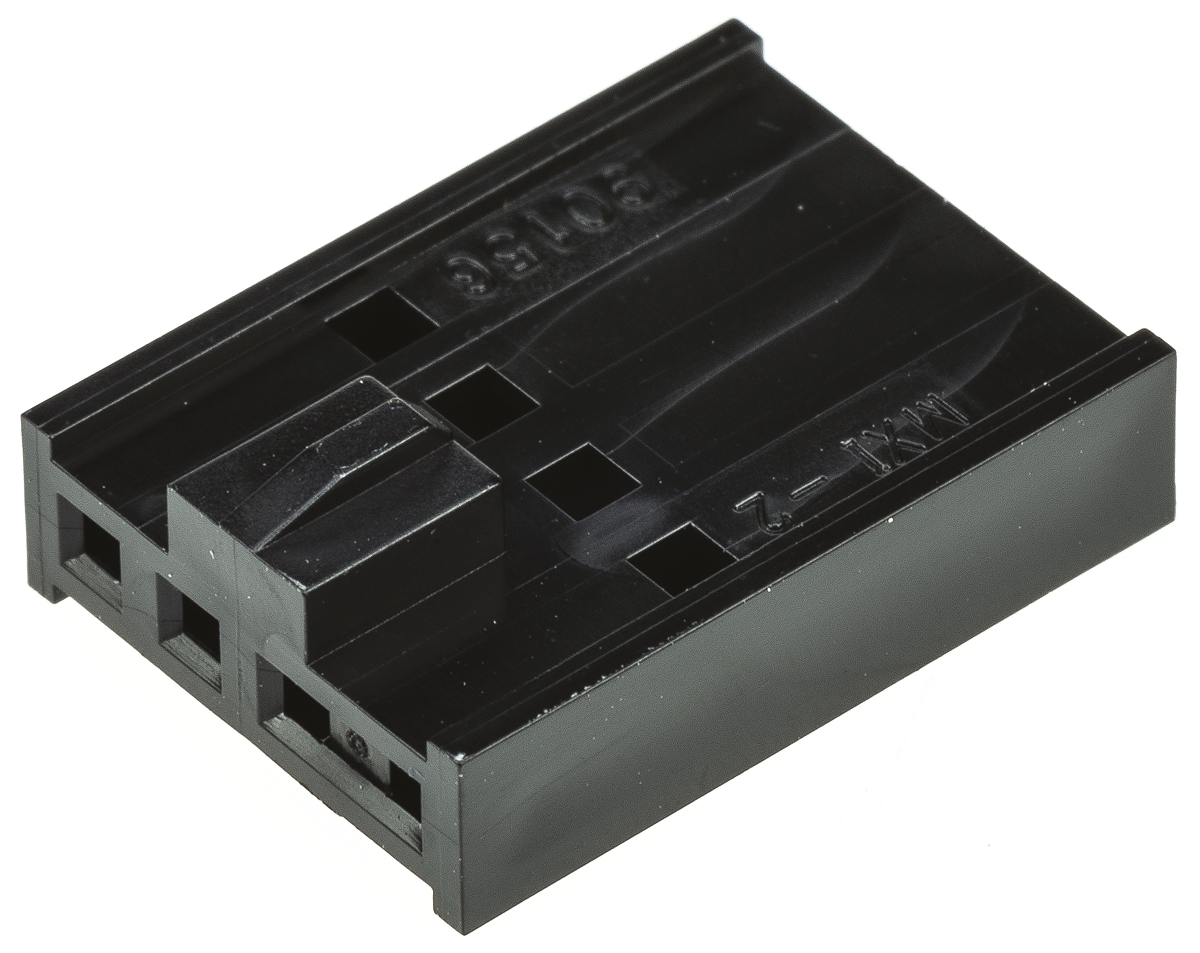

Molex 90156-0144, C-GRID III 90156, 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing

90156-0144 Molex , C-GRID III 90156, 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing
90156-0144
90156-0144
Molex

Product Information

Gender:
Female
Body Orientation:
Straight
Pitch:
2.54mm
Housing Material:
PPO
Width:
5.35mm
Length:
11.22mm
Number of Rows:
1
Series:
90156
For Use With:
C-Grid III Connector
Number of Contacts:
4
RoHs Compliant
Checking for live stock

Discover precision and reliability with the Molex 90156-0144, a high-performance C-GRID III series connector housing ideal for compact and efficient signal connections. Designed with a 2.54mm pitch and 4-way, single-row configuration, this female connector housing offers a robust interconnect solution for electronic assemblies. Perfectly suited for UK engineers and electronic professionals, this housing simplifies complex circuitry in commercial, industrial, and consumer electronics. It is renowned for its cost-effective design and reliable mating interface. It’s engineered for durability and precision, supporting stable connections in compact electronic environments. This housing is ideal when secure signal transmission and space-saving layouts are required.

How Does the Molex 90156-0144, 4 Way, 1 Row Female Connector Housing Work?

The Molex 90156-0144 housing works by securely holding female crimp terminals in place. These terminals, when inserted into the housing, provide electrical connection points for mating with corresponding male header pins. The 2.54mm pitch ensures standardised alignment and spacing, simplifying PCB design and assembly.

What Benefits Does the 2.54mm Pitch, 4 Way, 1 Row Female Connector Housing Offer?

  • Durable thermoplastic housing material.
  • Polarisation features to prevent mis-mating.
  • RoHS compliant and UL approved.
  • Provides reliable and stable electrical connections.
  • Simplifies installation with easy terminal insertion.
  • Supports versatile signal applications.
  • Compact design ideal for high-density PCBs.
  • Compatible with Molex crimp terminals.

Versatile Uses of the 90156-0144, 4 Way, 1 Row Female Connector Housing

  • TVs, set-top boxes, audio systems
  • Automation, sensors, instrumentation
  • Internal connections, motherboards
  • Routers, switches, modems
  • Diagnostic and portable medical equipment
