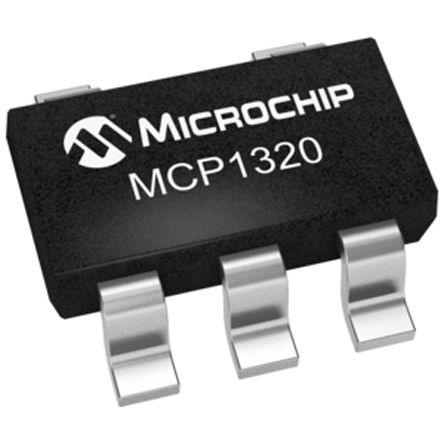

Microchip MCP1320T-46LE/OT, Voltage Supervisor, WDT, Reset Input, SOT-23 5-Pin

MCP1320T-46LE-OT Microchip MCP1320T-46LE/OT, Voltage Supervisor, WDT, Reset Input, SOT-23 5-Pin
Microchip

Product Information

Number of Supervisors:
1
Manual Reset:
Yes
Maximum Monitored Voltage:
4.71V
Dimensions:
3.1 x 1.8 x 1.3mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
1 V
Minimum Monitored Voltage:
4.6V
Watchdog Timer:
Yes
Output Driver:
Active Low, Open Drain
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Reset Active Time:
2240ms
RoHs Compliant
Checking for live stock

This is Voltage Supervisor WDT Reset Input SOT-23 5-Pin manufactured by Microchip. The manufacturer part number is MCP1320T-46LE/OT. It has 1 high-quality supervisors . In addition, the product has a manual reset feature yes . It is designed with a maximum 4.71v monitored voltage . The given dimensions of the product include 3.1 x 1.8 x 1.3mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 1 v. Additionally, it has a minimum 4.6v monitored voltage . Watchdog Timer Included - yes. The product includes active low, open drain output driver . The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has a maximum 2240ms reset active time .
