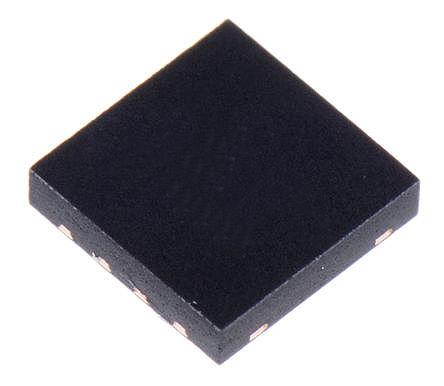

Linear Technology LT3014EDD#PBF, LDO Regulator, 20mA Adjustable, 1.22 → 60 V 8-Pin, DFN

LT3014EDD-PBF Linear Technology LT3014EDD#PBF, LDO Regulator, 20mA Adjustable, 1.22 → 60 V 8-Pin, DFN
LT3014EDD#PBF
Analog Devices

Product Information

Polarity:
Positive
Dimensions:
3 x 3 x 0.75mm
Regulator Type:
Low Dropout Voltage
Width:
3mm
Reference Voltage:
1.22V
Load Regulation:
25 mV
Output Type:
Adjustable
Package Type:
DFN
Maximum Operating Temperature:
+125 °C
Quiescent Current:
0.007mA
Number of Outputs:
1
Line Regulation:
10 mV
Length:
3mm
Pin Count:
8
Mounting Type:
Surface Mount
Height:
0.75mm
Output Voltage:
1.22 → 60 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
20mA
Maximum Input Voltage:
80 V
Minimum Input Voltage:
3 V
RoHs Compliant
Checking for live stock

This is Linear Technology LDO Regulator 20mA Adjustable 1.22 → 60 V 8-Pin DFN manufactured by Analog Devices. The manufacturer part number is LT3014EDD#PBF. While providing positive polarity. The given dimensions of the product include 3 x 3 x 0.75mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3mm wide. Its reference voltage is about 1.22v . Load Regulation - 25 mv. Furthermore, it has aadjustable output. The package is a sort of dfn. It has a maximum operating temperature of +125 °c. Supplied with 0.007ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 10 mv. Its accurate length is 3mm. It contains 8 pins. The product is available in surface mount configuration. In addition, the height is 0.75mm. Features a 1.22 → 60 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 20ma of maximum output current. 80 v is the maximum voltage of the bespoke product. The product has 3 v of minimum input voltage.

pdf icon
LT3014 20mA, 3V to 80V Low Dropout Micropower Linear Regulator Data sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
