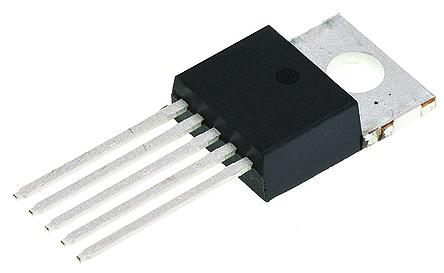

Linear Technology LT1963AET#PBF, LDO Regulator, 1.5A Adjustable, 1.21 → 20 V 5-Pin, TO-220

LT1963AET-PBF Linear Technology LT1963AET#PBF, LDO Regulator, 1.5A Adjustable, 1.21 → 20 V 5-Pin, TO-220
Analog Devices

Product Information

Polarity:
Positive
Dimensions:
10.541 x 4.572 x 15.748mm
Regulator Type:
Low Dropout Voltage
Width:
4.572mm
Reference Voltage:
1.21V
Load Regulation:
15 mV
Output Type:
Adjustable
Package Type:
TO-220
Maximum Operating Temperature:
+125 °C
Quiescent Current:
1µA
Number of Outputs:
1
Line Regulation:
5 mV
Length:
10.54mm
Pin Count:
5
Mounting Type:
Through Hole
Height:
15.748mm
Output Voltage:
1.21 → 20 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
1.5A
Maximum Input Voltage:
20 V
Minimum Input Voltage:
2.5 V
RoHs Compliant
Checking for live stock

This is Linear Technology LDO Regulator 1.5A Adjustable 1.21 → 20 V 5-Pin TO-220 manufactured by Analog Devices. The manufacturer part number is LT1963AET#PBF. While providing positive polarity. The given dimensions of the product include 10.541 x 4.572 x 15.748mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 4.572mm wide. Its reference voltage is about 1.21v . Load Regulation - 15 mv. Furthermore, it has aadjustable output. The package is a sort of to-220. It has a maximum operating temperature of +125 °c. Supplied with 1µa of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 5 mv. Its accurate length is 10.54mm. It contains 5 pins. The product is available in through hole configuration. In addition, the height is 15.748mm. Features a 1.21 → 20 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 1.5a of maximum output current. 20 v is the maximum voltage of the bespoke product. The product has 2.5 v of minimum input voltage.
