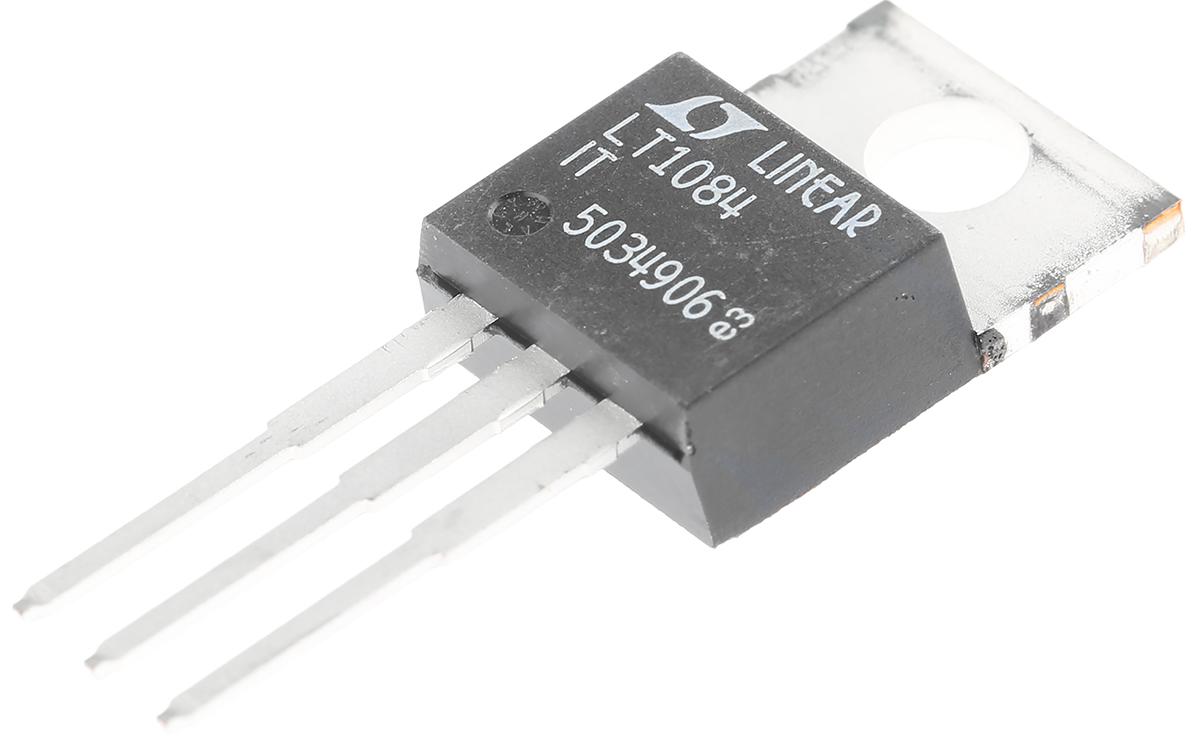

Linear Technology LT1084IT#PBF, LDO Regulator, 5A Adjustable, 1.25 → 28.5 V 3-Pin, TO-220

LT1084IT-PBF Linear Technology LT1084IT#PBF, LDO Regulator, 5A Adjustable, 1.25 → 28.5 V 3-Pin, TO-220
LT1084IT#PBF
Analog Devices

Product Information

Polarity:
Positive
Dimensions:
10.541 x 4.572 x 15.748mm
Regulator Type:
Low Dropout Voltage
Width:
4.572mm
Reference Voltage:
1.25V
Load Regulation:
0.4 %
Output Type:
Adjustable
Package Type:
TO-220
Maximum Operating Temperature:
+125 °C
Quiescent Current:
10mA
Number of Outputs:
1
Line Regulation:
0.5 %
Length:
10.54mm
Pin Count:
3
Mounting Type:
Through Hole
Height:
15.748mm
Output Voltage:
1.25 → 28.5 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
5A
Maximum Input Voltage:
30 V
Minimum Input Voltage:
1.5 V
RoHs Compliant
Checking for live stock

This is Linear Technology LDO Regulator 5A Adjustable 1.25 → 28.5 V 3-Pin TO-220 manufactured by Analog Devices. The manufacturer part number is LT1084IT#PBF. While providing positive polarity. The given dimensions of the product include 10.541 x 4.572 x 15.748mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 4.572mm wide. Its reference voltage is about 1.25v . Load Regulation - 0.4 %. Furthermore, it has aadjustable output. The package is a sort of to-220. It has a maximum operating temperature of +125 °c. Supplied with 10ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.5 %. Its accurate length is 10.54mm. It contains 3 pins. The product is available in through hole configuration. In addition, the height is 15.748mm. Features a 1.25 → 28.5 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 5a of maximum output current. 30 v is the maximum voltage of the bespoke product. The product has 1.5 v of minimum input voltage.
