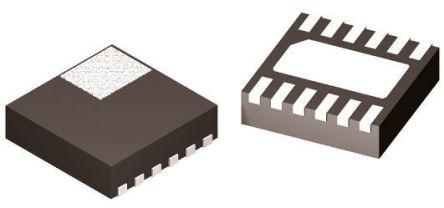

Linear Technology LT1763CDE-2.5#PBF, LDO Regulator, 500mA, 2.5 V 12-Pin, DFN

LT1763CDE-2-5-PBF Linear Technology LT1763CDE-2.5#PBF, LDO Regulator, 500mA, 2.5 V 12-Pin, DFN
Analog Devices

Product Information

Polarity:
Positive
Dimensions:
4 x 3 x 0.7mm
Regulator Type:
Low Dropout Voltage
Width:
3mm
Reference Voltage:
1.22V
Load Regulation:
25 mV
Output Type:
Fixed
Package Type:
DFN
Maximum Operating Temperature:
+125 °C
Quiescent Current:
30µA
Number of Outputs:
1
Line Regulation:
5 mV
Length:
4mm
Pin Count:
12
Mounting Type:
Surface Mount
Height:
0.7mm
Output Voltage:
2.5 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
500mA
Maximum Input Voltage:
20 V
Minimum Input Voltage:
1.8 V
RoHs Compliant
Checking for live stock

This is Linear Technology LDO Regulator 500mA 2.5 V 12-Pin DFN manufactured by Analog Devices. The manufacturer part number is LT1763CDE-2.5#PBF. While providing positive polarity. The given dimensions of the product include 4 x 3 x 0.7mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3mm wide. Its reference voltage is about 1.22v . Load Regulation - 25 mv. Furthermore, it has afixed output. The package is a sort of dfn. It has a maximum operating temperature of +125 °c. Supplied with 30µa of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 5 mv. Its accurate length is 4mm. It contains 12 pins. The product is available in surface mount configuration. In addition, the height is 0.7mm. Features a 2.5 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 500ma of maximum output current. 20 v is the maximum voltage of the bespoke product. The product has 1.8 v of minimum input voltage.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
LT1763 SPICE Model(Technical Reference)
pdf icon
LT1763CDE-2.5#PBF(Technical Reference)
