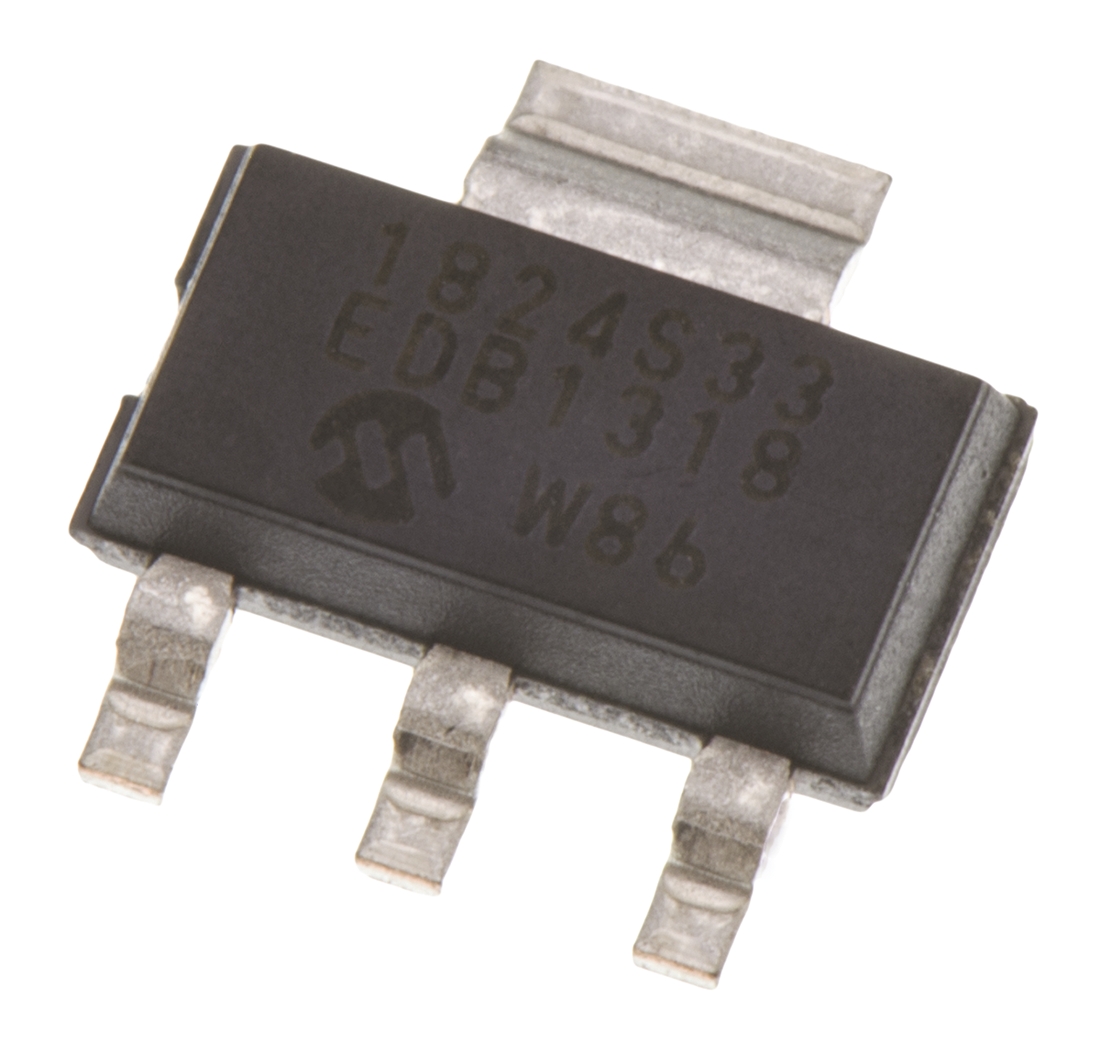

Microchip MCP1824ST-3302E/DB, LDO Regulator, 300mA, 3.3 V, ±2.5%, 2.1 → 6 Vin 3+Tab-Pin, SOT-223

Enrgtech Part No: ET16766366
|
Manufacturer Part No:
MCP1824ST-3302E/DB
|
Manufacturer: Microchip

MCP1824ST-3302E-DB Microchip MCP1824ST-3302E/DB, LDO Regulator, 300mA, 3.3 V, ±2.5%, 2.1 → 6 Vin 3+Tab-Pin, SOT-223

Product Information

Polarity:

Positive

Dimensions:

6.5 x 3.5 x 1.6mm

Regulator Type:

Low Dropout Voltage

Width:

3.5mm

Accuracy:

±2.5%

Load Regulation:

0.5 %

Output Type:

Fixed

Package Type:

SOT-223

Maximum Operating Temperature:

+125 °C

Quiescent Current:

0.12mA

Number of Outputs:

Line Regulation:

0.05 %/V

Checking for live stock

This is LDO Regulator 300mA 3.3 V ±2.5% 2.1 → 6 Vin 3+Tab-Pin SOT-223 manufactured by Microchip. The manufacturer part number is MCP1824ST-3302E/DB. While providing positive polarity. The given dimensions of the product include 6.5 x 3.5 x 1.6mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3.5mm wide. It provides high accuracy of ±2.5%. Load Regulation - 0.5 %. Furthermore, it has afixed output. The package is a sort of sot-223. It has a maximum operating temperature of +125 °c. Supplied with 0.12ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.05 %/v. Its accurate length is 6.5mm. It contains 3+tab pins. The product is available in surface mount configuration. In addition, the height is 1.6mm. Features a 3.3 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 300ma of maximum output current. 6 v is the maximum voltage of the bespoke product. The product has 2.1 v of minimum input voltage.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search MCP1824ST-3302E/DB on website for other similar products.

We accept all major payment methods for all products including ET16766366. Please check your shopping cart at the time of order.

You can order Microchip brand products with MCP1824ST-3302E/DB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Voltage Regulators category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Microchip MCP1824ST-3302E/DB, LDO Regulator, 300mA, 3.3 V, ±2.5%, 2.1 → 6 Vin 3+Tab-Pin, SOT-223. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP1824ST-3302E/DB, LDO Regulator, 300mA, 3.3 V, ±2.5%, 2.1 → 6 Vin 3+Tab-Pin, SOT-223.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16766366 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16766366.

Yes. We ship MCP1824ST-3302E/DB Internationally to many countries around the world.
