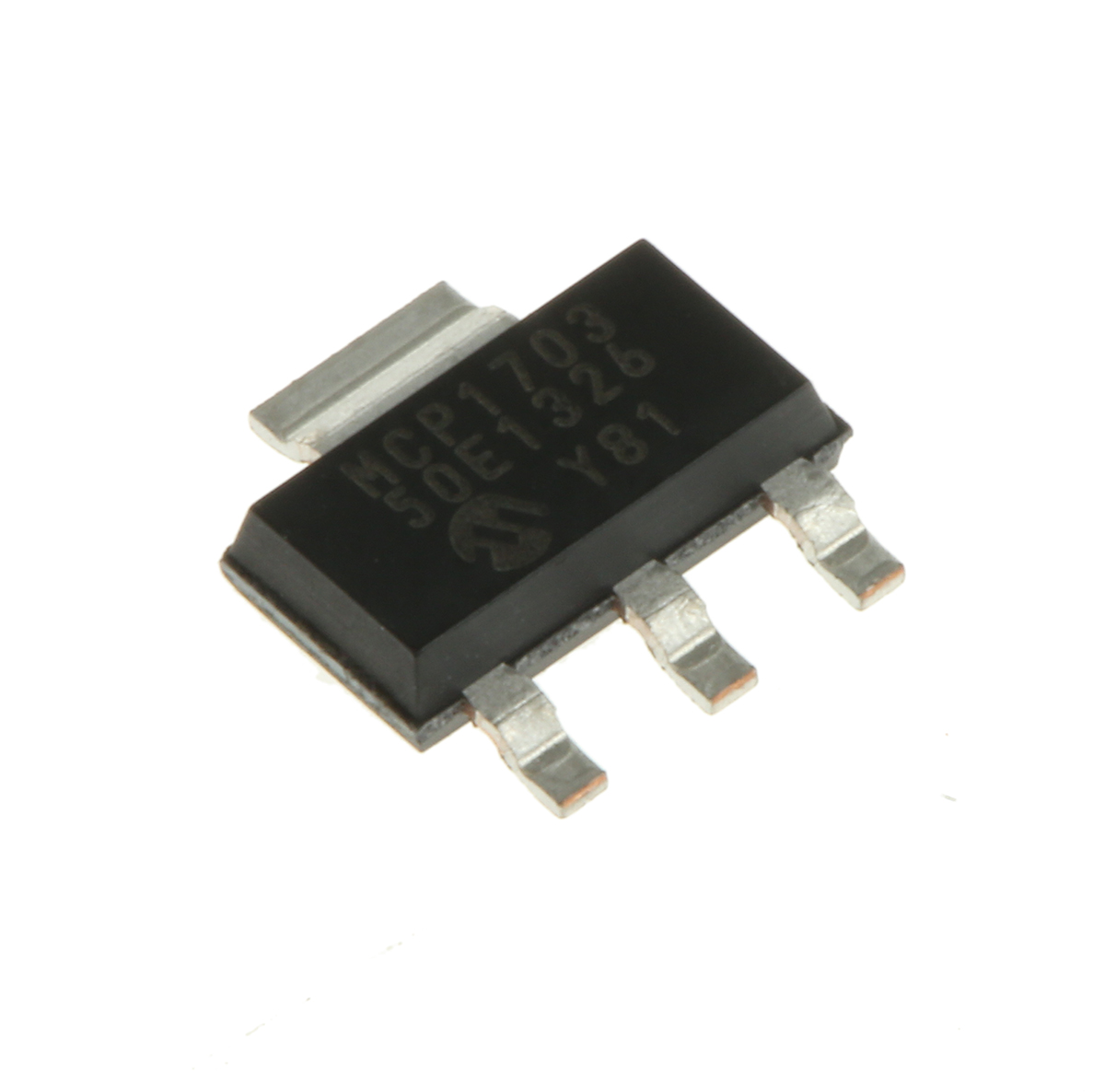

Microchip MCP1703-5002E/DB, LDO Regulator, 250mA, 5 V, ±2%, 2.7 → 16 Vin 3+Tab-Pin, SOT-223

MCP1703-5002E-DB Microchip MCP1703-5002E/DB, LDO Regulator, 250mA, 5 V, ±2%, 2.7 → 16 Vin 3+Tab-Pin, SOT-223
Microchip

Product Information

Polarity:
Positive
Dimensions:
6.5 x 3.5 x 1.6mm
Regulator Type:
Low Dropout Voltage
Width:
3.5mm
Accuracy:
±2%
Load Regulation:
1 %
Output Type:
Fixed
Package Type:
SOT-223
Maximum Operating Temperature:
+125 °C
Quiescent Current:
0.002mA
Number of Outputs:
1
Line Regulation:
0.1 %/V
Length:
6.5mm
Pin Count:
3+Tab
Mounting Type:
Surface Mount
Height:
1.6mm
Output Voltage:
5 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
250mA
Maximum Input Voltage:
16 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 250mA 5 V ±2% 2.7 → 16 Vin 3+Tab-Pin SOT-223 manufactured by Microchip. The manufacturer part number is MCP1703-5002E/DB. While providing positive polarity. The given dimensions of the product include 6.5 x 3.5 x 1.6mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3.5mm wide. It provides high accuracy of ±2%. Load Regulation - 1 %. Furthermore, it has afixed output. The package is a sort of sot-223. It has a maximum operating temperature of +125 °c. Supplied with 0.002ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.1 %/v. Its accurate length is 6.5mm. It contains 3+tab pins. The product is available in surface mount configuration. In addition, the height is 1.6mm. Features a 5 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 250ma of maximum output current. 16 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MCP1703-5002E/DB on website for other similar products.
We accept all major payment methods for all products including ET14111935. Please check your shopping cart at the time of order.
You can order Microchip brand products with MCP1703-5002E/DB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip MCP1703-5002E/DB, LDO Regulator, 250mA, 5 V, ±2%, 2.7 → 16 Vin 3+Tab-Pin, SOT-223. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP1703-5002E/DB, LDO Regulator, 250mA, 5 V, ±2%, 2.7 → 16 Vin 3+Tab-Pin, SOT-223.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14111935 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14111935.
Yes. We ship MCP1703-5002E/DB Internationally to many countries around the world.
