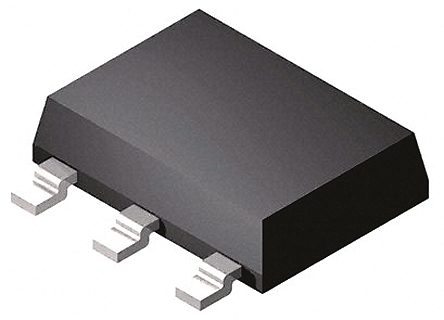

Microchip MCP1703T-3302E/DB, LDO Regulator, 200mA, 3.3 V, 2.7 → 16 Vin 3+Tab-Pin, SOT-223

MCP1703T-3302E-DB Microchip MCP1703T-3302E/DB, LDO Regulator, 200mA, 3.3 V, 2.7 → 16 Vin 3+Tab-Pin, SOT-223
Microchip

Product Information

Polarity:
Positive
Dimensions:
6.7 x 3.7 x 1.7mm
Regulator Type:
Low Dropout Voltage
Width:
3.7mm
Load Regulation:
2.5 %
Output Type:
Fixed
Package Type:
SOT-223
Maximum Operating Temperature:
+125 °C
Quiescent Current:
5µA
Number of Outputs:
1
Line Regulation:
0.3 %/V
Length:
6.7mm
Pin Count:
3+Tab
Mounting Type:
Surface Mount
Height:
1.7mm
Output Voltage:
3.3 V
Minimum Operating Temperature:
-40 °C
Power Rating:
1.35W
Maximum Output Current:
200mA
Maximum Input Voltage:
16 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 200mA 3.3 V 2.7 → 16 Vin 3+Tab-Pin SOT-223 manufactured by Microchip. The manufacturer part number is MCP1703T-3302E/DB. While providing positive polarity. The given dimensions of the product include 6.7 x 3.7 x 1.7mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3.7mm wide. Load Regulation - 2.5 %. Furthermore, it has afixed output. The package is a sort of sot-223. It has a maximum operating temperature of +125 °c. Supplied with 5µa of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.3 %/v. Its accurate length is 6.7mm. It contains 3+tab pins. The product is available in surface mount configuration. In addition, the height is 1.7mm. Features a 3.3 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Feature 1.35w of power rating. Featuring 200ma of maximum output current. 16 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.
