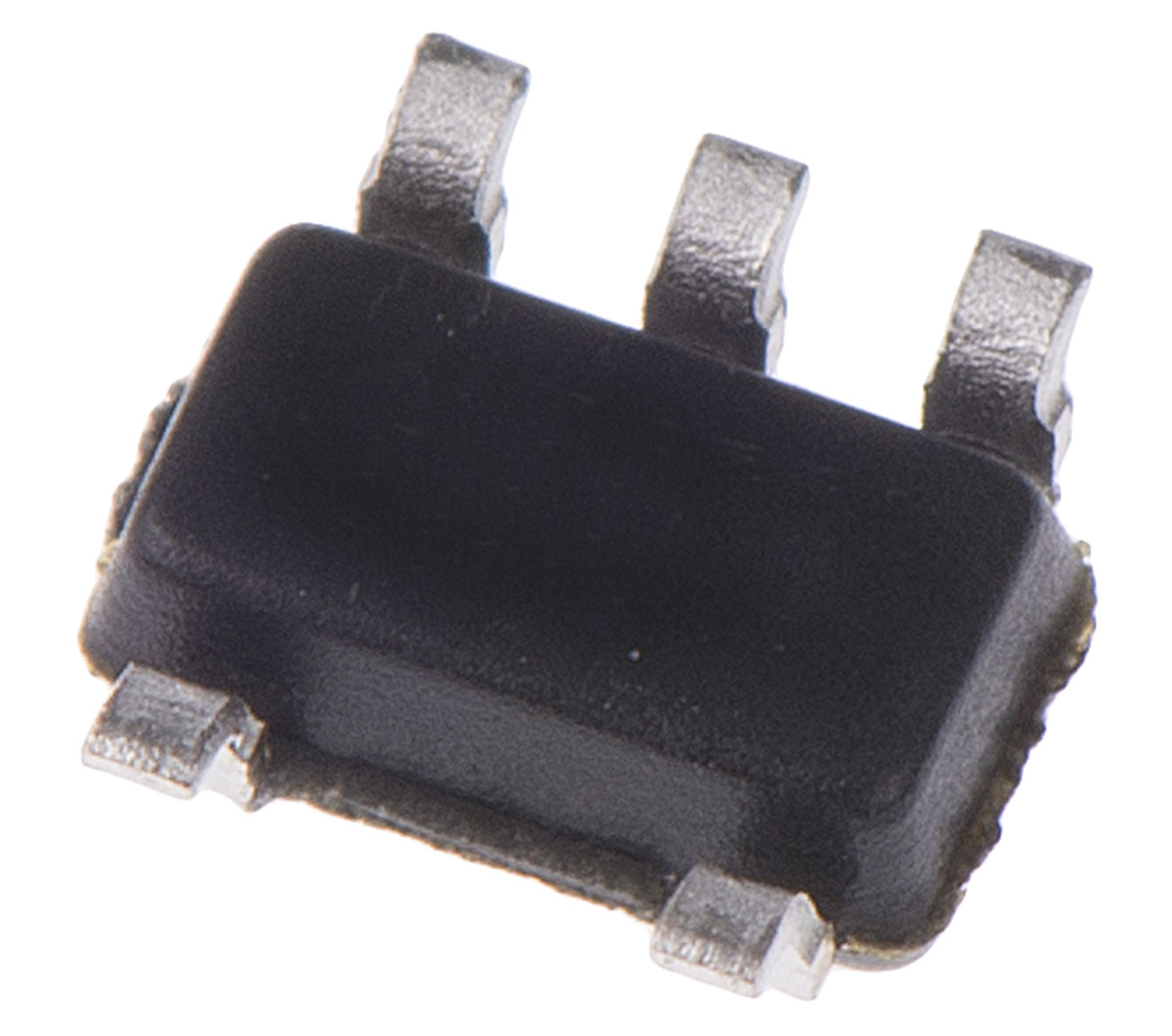

Microchip TC1185-2.5VCT713, LDO Regulator, 150mA, 2.5 V, ±2.5% 5-Pin, SOT-23

TC1185-2-5VCT713 Microchip TC1185-2.5VCT713, LDO Regulator, 150mA, 2.5 V, ±2.5% 5-Pin, SOT-23
TC1185-2.5VCT713
Microchip

Product Information

Polarity:
Positive
Dimensions:
3.1 x 1.8 x 1.3mm
Regulator Type:
Low Dropout Voltage
Width:
1.8mm
Accuracy:
±2.5%
Load Regulation:
0.5 %
Output Type:
Fixed
Package Type:
SOT-23
Maximum Operating Temperature:
+125 °C
Quiescent Current:
<0.0005mA
Number of Outputs:
1
Line Regulation:
0.05 %
Length:
3.1mm
Pin Count:
5
Mounting Type:
Surface Mount
Height:
1.3mm
Output Voltage:
2.5 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
150mA
Maximum Input Voltage:
6 V
Minimum Input Voltage:
2.7 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 150mA 2.5 V ±2.5% 5-Pin SOT-23 manufactured by Microchip. The manufacturer part number is TC1185-2.5VCT713. While providing positive polarity. The given dimensions of the product include 3.1 x 1.8 x 1.3mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 1.8mm wide. It provides high accuracy of ±2.5%. Load Regulation - 0.5 %. Furthermore, it has afixed output. The package is a sort of sot-23. It has a maximum operating temperature of +125 °c. Supplied with <0.0005ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.05 %. Its accurate length is 3.1mm. It contains 5 pins. The product is available in surface mount configuration. In addition, the height is 1.3mm. Features a 2.5 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 150ma of maximum output current. 6 v is the maximum voltage of the bespoke product. The product has 2.7 v of minimum input voltage.
