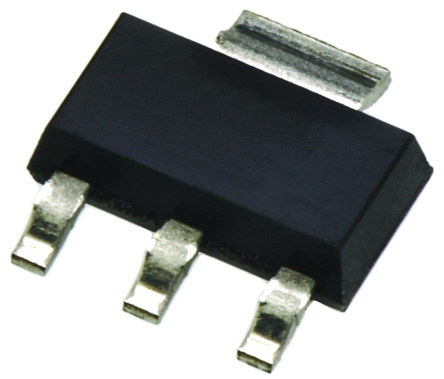

DiodesZetex AZ1117H-ADJTRE1, LDO Regulator, 1A Adjustable, 1.25 → 12 V, 2% 3+Tab-Pin, SOT-223

AZ1117H-ADJTRE1 DiodesZetex , LDO Regulator, 1A Adjustable, 1.25 → 12 V, 2% 3+Tab-Pin, SOT-223
DiodesZetex

Product Information

Polarity:
Positive
Dimensions:
6.7 x 3.7 x 1.7mm
Regulator Type:
Low Dropout Voltage
Width:
3.7mm
Reference Voltage:
1.27V
Accuracy:
2%
Load Regulation:
0.4 %
Output Type:
Adjustable
Package Type:
SOT-223
Maximum Operating Temperature:
+125 °C
Quiescent Current:
10mA
Number of Outputs:
1
Line Regulation:
0.2 %
Length:
6.7mm
Pin Count:
3+Tab
Mounting Type:
Surface Mount
Height:
1.7mm
Output Voltage:
1.25 → 12 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
1A
Maximum Input Voltage:
15 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 1A Adjustable 1.25 → 12 V 2% 3+Tab-Pin SOT-223 manufactured by DiodesZetex. The manufacturer part number is AZ1117H-ADJTRE1. While providing positive polarity. The given dimensions of the product include 6.7 x 3.7 x 1.7mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3.7mm wide. Its reference voltage is about 1.27v . It provides high accuracy of 2%. Load Regulation - 0.4 %. Furthermore, it has aadjustable output. The package is a sort of sot-223. It has a maximum operating temperature of +125 °c. Supplied with 10ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.2 %. Its accurate length is 6.7mm. It contains 3+tab pins. The product is available in surface mount configuration. In addition, the height is 1.7mm. Features a 1.25 → 12 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 1a of maximum output current. 15 v is the maximum voltage of the bespoke product.

pdf icon
AZ1117, 1A Low Dropout Linear Regulator(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
