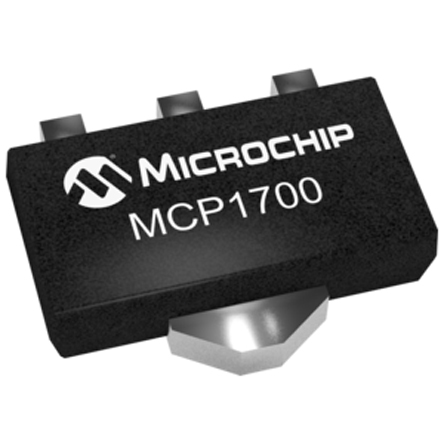

Microchip MCP1700T-3302E/MB, LDO Regulator, 250mA, 3.3 V, 3%, 2.3 → 6 Vin 3-Pin, SOT-89

MCP1700T-3302E-MB Microchip MCP1700T-3302E/MB, LDO Regulator, 250mA, 3.3 V, 3%, 2.3 → 6 Vin 3-Pin, SOT-89
Microchip

Product Information

Polarity:
Positive
Dimensions:
4.6 x 2.29 x 1.6mm
Regulator Type:
Low Dropout Voltage
Width:
2.29mm
Accuracy:
3%
Load Regulation:
1 %
Output Type:
Fixed
Package Type:
SOT-89
Maximum Operating Temperature:
+125 °C
Quiescent Current:
0.0016mA
Number of Outputs:
1
Line Regulation:
0.75 %/V
Length:
4.6mm
Pin Count:
3
Mounting Type:
Surface Mount
Height:
1.6mm
Output Voltage:
3.3 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
250mA
Maximum Input Voltage:
6 V
Minimum Input Voltage:
2.3 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 250mA 3.3 V 3% 2.3 → 6 Vin 3-Pin SOT-89 manufactured by Microchip. The manufacturer part number is MCP1700T-3302E/MB. While providing positive polarity. The given dimensions of the product include 4.6 x 2.29 x 1.6mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 2.29mm wide. It provides high accuracy of 3%. Load Regulation - 1 %. Furthermore, it has afixed output. The package is a sort of sot-89. It has a maximum operating temperature of +125 °c. Supplied with 0.0016ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.75 %/v. Its accurate length is 4.6mm. It contains 3 pins. The product is available in surface mount configuration. In addition, the height is 1.6mm. Features a 3.3 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 250ma of maximum output current. 6 v is the maximum voltage of the bespoke product. The product has 2.3 v of minimum input voltage.
