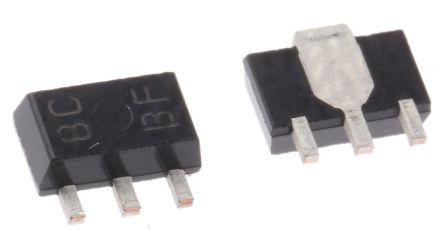

New Japan Radio NJM78L05UA-TE1 Linear Voltage Regulator, 100mA, 5 V 3-Pin, SOT-89

NJM78L05UA-TE1 New Japan Radio Linear Voltage Regulator, 100mA, 5 V 3-Pin, SOT-89
New Japan Radio

Product Information

Polarity:
Positive
Number of Outputs:
1
Load Regulation:
60 mV
Dimensions:
4.5 x 2.5 x 1.5mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Regulator Type:
Linear Voltage
Output Type:
Fixed
Height:
1.5mm
Width:
2.5mm
Length:
4.5mm
Output Voltage:
5 V
Package Type:
SOT-89
Minimum Operating Temperature:
-40 °C
Power Rating:
0.3W
Quiescent Current:
2mA
Maximum Output Current:
100mA
Pin Count:
3
Maximum Input Voltage:
30 V
Line Regulation:
200 mV
Checking for live stock

This is Linear Voltage Regulator 100mA 5 V 3-Pin SOT-89 manufactured by New Japan Radio. The manufacturer part number is NJM78L05UA-TE1. While providing positive polarity. Additionally, the product is supplied with 1 outputs. Load Regulation - 60 mv. The given dimensions of the product include 4.5 x 2.5 x 1.5mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. The regulator is a type of linear voltage regulator. Furthermore, it has afixed output. In addition, the height is 1.5mm. Furthermore, the product is 2.5mm wide. Its accurate length is 4.5mm. Features a 5 v output voltage. The package is a sort of sot-89. Whereas, the minimum operating temperature of the product is -40 °c. Feature 0.3w of power rating. Supplied with 2ma of quiescent current. Featuring 100ma of maximum output current. It contains 3 pins. 30 v is the maximum voltage of the bespoke product. Has a line regulation of 200 mv.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NJM78L05UA-TE1 on website for other similar products.
We accept all major payment methods for all products including ET13911341. Please check your shopping cart at the time of order.
You can order New Japan Radio brand products with NJM78L05UA-TE1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of New Japan Radio NJM78L05UA-TE1 Linear Voltage Regulator, 100mA, 5 V 3-Pin, SOT-89. You can also check on our website or by contacting our customer support team for further order details on New Japan Radio NJM78L05UA-TE1 Linear Voltage Regulator, 100mA, 5 V 3-Pin, SOT-89.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13911341 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "New Japan Radio" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13911341.
Yes. We ship NJM78L05UA-TE1 Internationally to many countries around the world.
