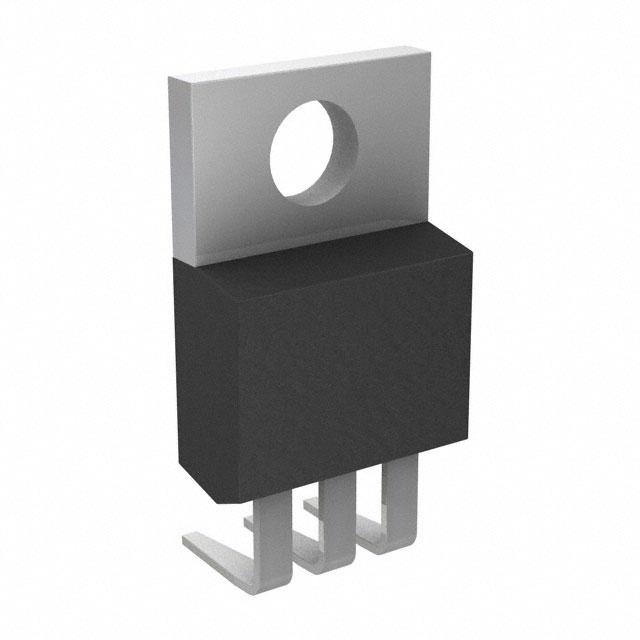

Analog Devices Inc. LT1086IT#36PBF

LT1086IT-36PBF Analog Devices Inc. LT1086IT#36PBF
Analog Devices Inc.

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Voltage Dropout (Max):
1.5V @ 1.5A
Operating Temperature:
-40°C ~ 125°C
Package / Case:
TO-220-3 Formed Leads
Protection Features:
Over Current, Over Temperature
edacadModel:
LT1086IT#36PBF Models
Voltage - Output (Min/Fixed):
1.25V
Number of Regulators:
1
REACH Status:
REACH Unaffected
Output Type:
Adjustable
Current - Output:
1.5A
Voltage - Input (Max):
25V
edacadModelUrl:
/en/models/3900725
Voltage - Output (Max):
23.5V
Control Features:
-
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
13 Weeks
Mounting Type:
Through Hole
PSRR:
75dB (120Hz)
Series:
-
Supplier Device Package:
TO-220-3 Flow 36
Output Configuration:
Positive
Base Product Number:
LT1086
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is LT1086IT#36PBF. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product's maximum voltage dropout is 1.5v @ 1.5a. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in to-220-3 formed leads. It provides robust protection features, such as over current, over temperature. The minimum or fixed output voltage include 1.25v. Equipped with [Number of Regulator] regulator(s). In addition, it is reach unaffected. Furthermore, it has aadjustable output. While, the output current includes 1.5a. Its maximum input voltage is 25v. While the maximum output voltage is 23.5v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 13 weeks standard lead time. The product is available in through hole configuration. Additionally, 75db (120hz) is the given PSSR of the product. to-220-3 flow 36 is the supplier device package value. It boasts positive output configuration. Moreover, it corresponds to lt1086, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Material Declaration LT1086IT#36PBF(Environmental Information)
pdf icon
Multiple Parts 10/Aug/2022(PCN Design/Specification)
pdf icon
LT1086 Series(Datasheets)
