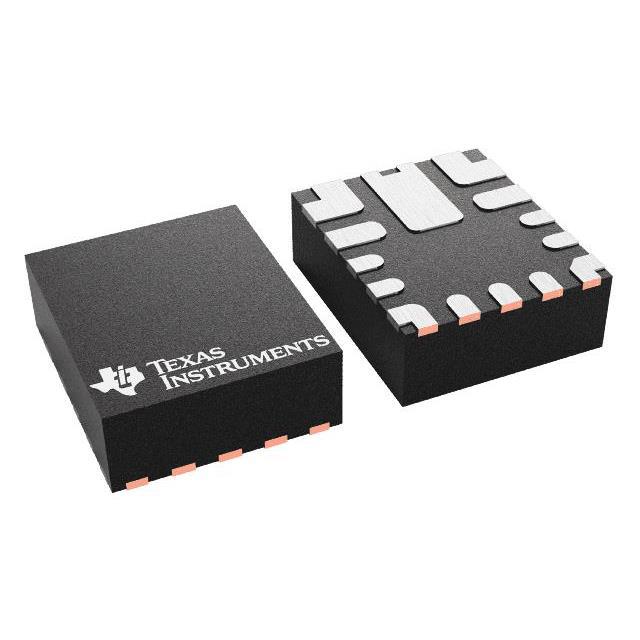

Texas Instruments TPS543820RPYR-ET

TPS543820RPYR-ET Texas Instruments
Texas Instruments

Product Information

Synchronous Rectifier:
Yes
HTSUS:
8542.39.0001
RoHS Status:
Not applicable
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
14-VFQFN
Voltage - Input (Min):
4V
Function:
Step-Down
edacadModel:
TPS543820RPYR-ET Models
Voltage - Output (Min/Fixed):
0.5V
Frequency - Switching:
400kHz ~ 2.6MHz
Output Type:
Adjustable
Current - Output:
8A
Voltage - Input (Max):
18V
edacadModelUrl:
/en/models/13636607
Voltage - Output (Max):
5.5V
Topology:
Buck
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
2 (1 Year)
standardLeadTime:
6 Weeks
Mounting Type:
Surface Mount
Series:
SWIFT™
Supplier Device Package:
14-VQFN-HR (2.5x3)
Base Product Number:
TPS543820
Output Configuration:
Positive
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is TPS543820RPYR-ET. This also includes yes synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. The product is not applicable. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 14-vfqfn. It offers 4v of minimum input voltage. It performs basic function of step-down. The minimum or fixed output voltage include 0.5v. The switching frequency of the standard product is 400khz ~ 2.6mhz. Furthermore, it has aadjustable output. While, the output current includes 8a. Its maximum input voltage is 18v. While the maximum output voltage is 5.5v. Topology includes buck. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 2 (1 year). It has a long 6 weeks standard lead time. The product is available in surface mount configuration. The product swift™, is a highly preferred choice for users. 14-vqfn-hr (2.5x3) is the supplier device package value. Moreover, it corresponds to tps543820, a base product number of the product. It boasts positive output configuration. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
LBC9 Device Wafer Fab Add 25/May/2023(PCN Assembly/Origin)
pdf icon
TPS543yyy 19/Jul/2021(PCN Design/Specification)
