Microchip Technology MIC4685WR-TR

MIC4685WR-TR Microchip Technology
Microchip Technology

Product Information

Manufacturer Standard Lead Time:
10 Weeks
Detailed Description:
Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 3A SPak-7 (7 leads + Tab)
Synchronous Rectifier:
No
Frequency - Switching:
200kHz
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:

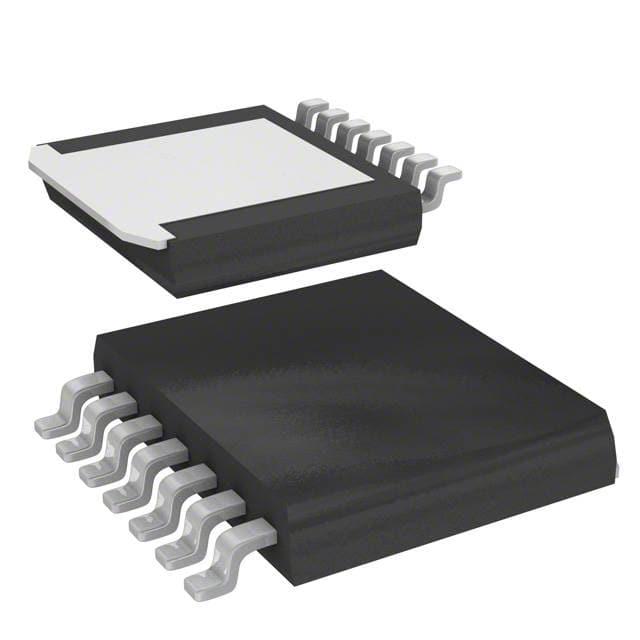

SPak-7 (7 leads + Tab)
Voltage - Input (Min):
4V
Function:
Step-Down
Base Part Number:
MIC4685
Voltage - Output (Min/Fixed):
1.235V
Output Type:
Adjustable
Current - Output:
3A
Voltage - Input (Max):
30V
Voltage - Output (Max):
28.2V
Manufacturer:
Microchip Technology
Number of Outputs:
1
Mounting Type:
Surface Mount
Series:
SuperSwitcher™
Supplier Device Package:
S-PAK-7
Packaging:
Cut Tape (CT)
Customer Reference:
Output Configuration:
Positive
Topology:
Buck
Checking for live stock

This is manufactured by Microchip Technology. The manufacturer part number is MIC4685WR-TR. It has typical 10 weeks of manufacturer standard lead time. It features buck switching regulator ic positive adjustable 1.235v 1 output 3a spak-7 (7 leads + tab). This also includes no synchronous rectifier. The switching frequency of the standard product is 200khz. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in spak-7 (7 leads + tab). It offers 4v of minimum input voltage. It performs basic function of step-down. Base Part Number: mic4685. The minimum or fixed output voltage include 1.235v. Furthermore, it has aadjustable output. While, the output current includes 3a. Its maximum input voltage is 30v. While the maximum output voltage is 28.2v. The microchip technology's product offers user-desired applications. Additionally, the product is supplied with 1 outputs. The product is available in surface mount configuration. The product superswitcher™, is a highly preferred choice for users. s-pak-7 is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. It boasts positive output configuration. Topology includes buck.

pdf icon
Qualification Production Site 23/May/2014(PCN Assembly/Origin)
pdf icon
MBB/Label Chgs 16/Nov/2018(PCN Packaging)
