Diodes Incorporated PAM2316AGCADJ

PAM2316AGCADJ Diodes Incorporated
Diodes Incorporated

Product Information

Detailed Description:
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 2A 8-WFDFN Exposed Pad
Synchronous Rectifier:
Yes
Frequency - Switching:
2.5MHz
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:

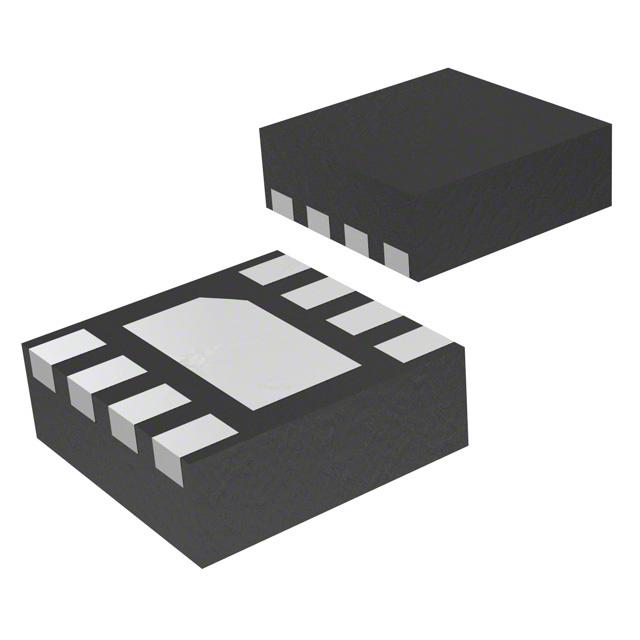

8-WFDFN Exposed Pad
Voltage - Input (Min):
2.7V
Function:
Step-Down
Base Part Number:
PAM2316
Voltage - Output (Min/Fixed):
1V
Output Type:
Adjustable
Current - Output:
2A
Voltage - Input (Max):
5.5V
Voltage - Output (Max):
3.3V
Topology:
Buck
Number of Outputs:
1
Mounting Type:
Surface Mount
Supplier Device Package:
8-TDFN (2x2)
Packaging:
Cut Tape (CT)
Customer Reference:
Output Configuration:
Positive
Manufacturer:
Diodes Incorporated
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is PAM2316AGCADJ. It features buck switching regulator ic positive adjustable 1v 1 output 2a 8-wfdfn exposed pad. This also includes yes synchronous rectifier. The switching frequency of the standard product is 2.5mhz. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 8-wfdfn exposed pad. It offers 2.7v of minimum input voltage. It performs basic function of step-down. Base Part Number: pam2316. The minimum or fixed output voltage include 1v. Furthermore, it has aadjustable output. While, the output current includes 2a. Its maximum input voltage is 5.5v. While the maximum output voltage is 3.3v. Topology includes buck. Additionally, the product is supplied with 1 outputs. The product is available in surface mount configuration. 8-tdfn (2x2) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. It boasts positive output configuration. The diodes incorporated's product offers user-desired applications.

pdf icon
Mult Dev EOL 15/Oct/2019(PCN Obsolescence/ EOL)
pdf icon
PAM2316AGCADJ(Datasheets)
pdf icon
Diodes RoHS 3 Cert(Environmental Information)
