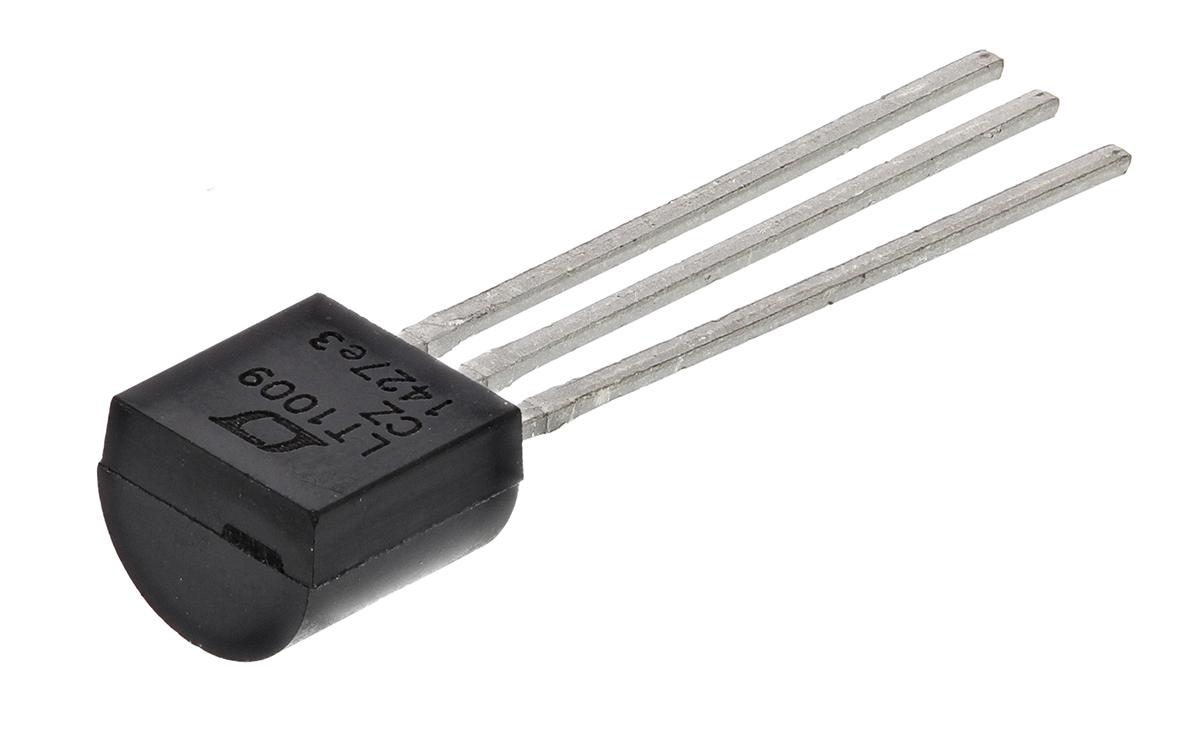

Linear Technology LT1009CZ#PBF, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, TO-92

LT1009CZ-PBF Linear Technology LT1009CZ#PBF, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, TO-92
Analog Devices

Product Information

Load Regulation:
10 mV
Dimensions:
4.57 x 3.56 x 4.57mm
Mounting Type:
Through Hole
Height:
4.57mm
Width:
3.56mm
Length:
4.57mm
Initial Accuracy:
±0.2 %
Package Type:
TO-92
Maximum Output Voltage:
2.505 V
Minimum Operating Temperature:
0 °C
Minimum Output Voltage:
2.495 V
Nominal Voltage:
2.5V
Reference Type:
Fixed
Maximum Operating Temperature:
+70 °C
Pin Count:
3
Topology:
Shunt
Checking for live stock

This is Linear Technology Fixed Shunt Voltage Reference 2.5V ±0.2 % 3-Pin TO-92 manufactured by Analog Devices. The manufacturer part number is LT1009CZ#PBF. Load Regulation - 10 mv. The given dimensions of the product include 4.57 x 3.56 x 4.57mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Furthermore, the product is 3.56mm wide. Its accurate length is 4.57mm. Its initial accuracy is approximately ±0.2 % . The package is a sort of to-92. Its output voltage (maximum) includes 2.505 v. Whereas, the minimum operating temperature of the product is 0 °c. The product features 2.495 v minimum output voltage. The nominal voltage of the product is 2.5v. The product has a reference of fixed type. It has a maximum operating temperature of +70 °c. It contains 3 pins. Topology includes shunt.

pdf icon
LT1009 Series, 2.5V Reference Operational Amplifier Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LT1009CZ#PBF on website for other similar products.
We accept all major payment methods for all products including ET18353315. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with LT1009CZ#PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage References category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Linear Technology LT1009CZ#PBF, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, TO-92. You can also check on our website or by contacting our customer support team for further order details on Linear Technology LT1009CZ#PBF, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, TO-92.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18353315 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18353315.
Yes. We ship LT1009CZ#PBF Internationally to many countries around the world.
