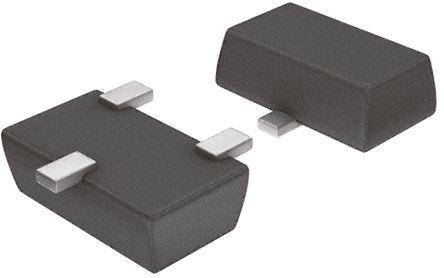

Diodes Inc ZTL432AFFTA, Adjustable Shunt Voltage Reference 2.5 - 20V, ±1.0 % 3-Pin, SOT-23LF

ZTL432AFFTA Diodes Inc , Adjustable Shunt Voltage Reference 2.5 - 20V, ±1.0 % 3-Pin, SOT-23LF
DiodesZetex

Product Information

Initial Accuracy:
±1.0 %
Dimensions:
3 x 1.7 x 1mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Height:
1mm
Width:
1.7mm
Length:
3mm
Package Type:
SOT-23LF
Maximum Output Voltage:
20 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
2.525 V
Nominal Voltage:
2.5 - 20V
Reference Type:
Adjustable
Maximum Output Current:
100mA
Pin Count:
3
Topology:
Shunt
RoHs Compliant
Checking for live stock

This is Diodes Inc Adjustable Shunt Voltage Reference 2.5 - 20V ±1.0 % 3-Pin SOT-23LF manufactured by DiodesZetex. The manufacturer part number is ZTL432AFFTA. Its initial accuracy is approximately ±1.0 % . The given dimensions of the product include 3 x 1.7 x 1mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. In addition, the height is 1mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3mm. The package is a sort of sot-23lf. Its output voltage (maximum) includes 20 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 2.525 v minimum output voltage. The nominal voltage of the product is 2.5 - 20v. The product has a reference of adjustable type. Featuring 100ma of maximum output current. It contains 3 pins. Topology includes shunt.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
