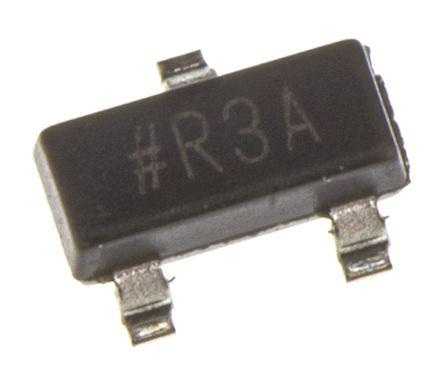

Analog Devices ADR5041ARTZ-REEL7, Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, SOT-23

ADR5041ARTZ-REEL7 Analog Devices , Fixed Shunt Voltage Reference 2.5V, ±0.2 % 3-Pin, SOT-23
ADR5041ARTZ-REEL7
Analog Devices

Product Information

Initial Accuracy:
±0.2 %
Dimensions:
3.04 x 1.4 x 1.02mm
Mounting Type:
Surface Mount
Height:
1.02mm
Width:
1.4mm
Length:
3.04mm
Package Type:
SOT-23
Maximum Output Voltage:
2.5 V
Minimum Operating Temperature:
-40 °C
Nominal Voltage:
2.5V
Reference Type:
Fixed
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Topology:
Shunt
RoHs Compliant
Checking for live stock

This is Fixed Shunt Voltage Reference 2.5V ±0.2 % 3-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is ADR5041ARTZ-REEL7. Its initial accuracy is approximately ±0.2 % . The given dimensions of the product include 3.04 x 1.4 x 1.02mm. The product is available in surface mount configuration. In addition, the height is 1.02mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3.04mm. The package is a sort of sot-23. Its output voltage (maximum) includes 2.5 v. Whereas, the minimum operating temperature of the product is -40 °c. The nominal voltage of the product is 2.5v. The product has a reference of fixed type. It has a maximum operating temperature of +125 °c. It contains 3 pins. Topology includes shunt.

pdf icon
ADR5040/ADR5041/ADR5043/ADR5044/ADR5045, Precision Micropower Shunt Mode Voltage References(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
