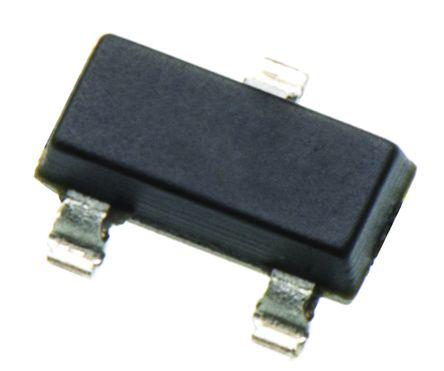

Analog Devices AD1585ARTZ-R2, Fixed Series Voltage Reference 5V, ±0.1 % 3-Pin, SOT-23

AD1585ARTZ-R2 Analog Devices , Fixed Series Voltage Reference 5V, ±0.1 % 3-Pin, SOT-23
Analog Devices

Product Information

Load Regulation:
4.8 mV/mA
Dimensions:
3.04 x 1.4 x 1.02mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Line Regulation:
25 μV/V
Maximum Input Voltage:
6 V
Height:
1.02mm
Width:
1.4mm
Length:
3.04mm
Initial Accuracy:
±0.1 %
Package Type:
SOT-23
Maximum Output Voltage:
5.05 V
Minimum Operating Temperature:
-55 °C
Minimum Output Voltage:
4.95 V
Nominal Voltage:
5V
Reference Type:
Fixed
Maximum Output Current:
5mA
Pin Count:
3
Topology:
Series
RoHs Compliant
Checking for live stock

This is Fixed Series Voltage Reference 5V ±0.1 % 3-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is AD1585ARTZ-R2. Load Regulation - 4.8 mv/ma. The given dimensions of the product include 3.04 x 1.4 x 1.02mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of 25 μv/v. 6 v is the maximum voltage of the bespoke product. In addition, the height is 1.02mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3.04mm. Its initial accuracy is approximately ±0.1 % . The package is a sort of sot-23. Its output voltage (maximum) includes 5.05 v. Whereas, the minimum operating temperature of the product is -55 °c. The product features 4.95 v minimum output voltage. The nominal voltage of the product is 5v. The product has a reference of fixed type. Featuring 5ma of maximum output current. It contains 3 pins. Topology includes series.

pdf icon
2.5V to 5.0V Precision Voltage Reference Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD1585ARTZ-R2 on website for other similar products.
We accept all major payment methods for all products including ET16757092. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD1585ARTZ-R2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage References category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD1585ARTZ-R2, Fixed Series Voltage Reference 5V, ±0.1 % 3-Pin, SOT-23. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD1585ARTZ-R2, Fixed Series Voltage Reference 5V, ±0.1 % 3-Pin, SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16757092 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16757092.
Yes. We ship AD1585ARTZ-R2 Internationally to many countries around the world.
