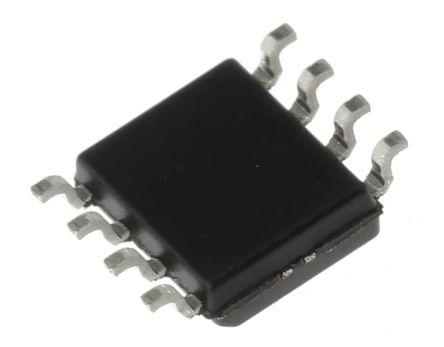

Analog Devices AD780ARZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 % 8-Pin, SOIC

AD780ARZ Analog Devices , Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 % 8-Pin, SOIC
AD780ARZ
Analog Devices

Product Information

Load Regulation:
75 μV/mA
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Line Regulation:
10 μV/V
Maximum Input Voltage:
36 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Initial Accuracy:
±0.2 %
Package Type:
SOIC
Maximum Output Voltage:
2 V, 3 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
2.495 V, 2.995 V
Nominal Voltage:
2.5 V, 3V
Reference Type:
Programmable
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series/Shunt
RoHs Compliant
Checking for live stock

This is Adjustable Series/Shunt Voltage Reference 2.5 V 3 V ±0.2 % 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD780ARZ. Load Regulation - 75 μv/ma. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. Has a line regulation of 10 μv/v. 36 v is the maximum voltage of the bespoke product. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Its initial accuracy is approximately ±0.2 % . The package is a sort of soic. Its output voltage (maximum) includes 2 v, 3 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 2.495 v, 2.995 v minimum output voltage. The nominal voltage of the product is 2.5 v, 3v. The product has a reference of programmable type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series/shunt.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD780ARZ on website for other similar products.
We accept all major payment methods for all products including ET14156647. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD780ARZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage References category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD780ARZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 % 8-Pin, SOIC. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD780ARZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 % 8-Pin, SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14156647 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14156647.
Yes. We ship AD780ARZ Internationally to many countries around the world.
