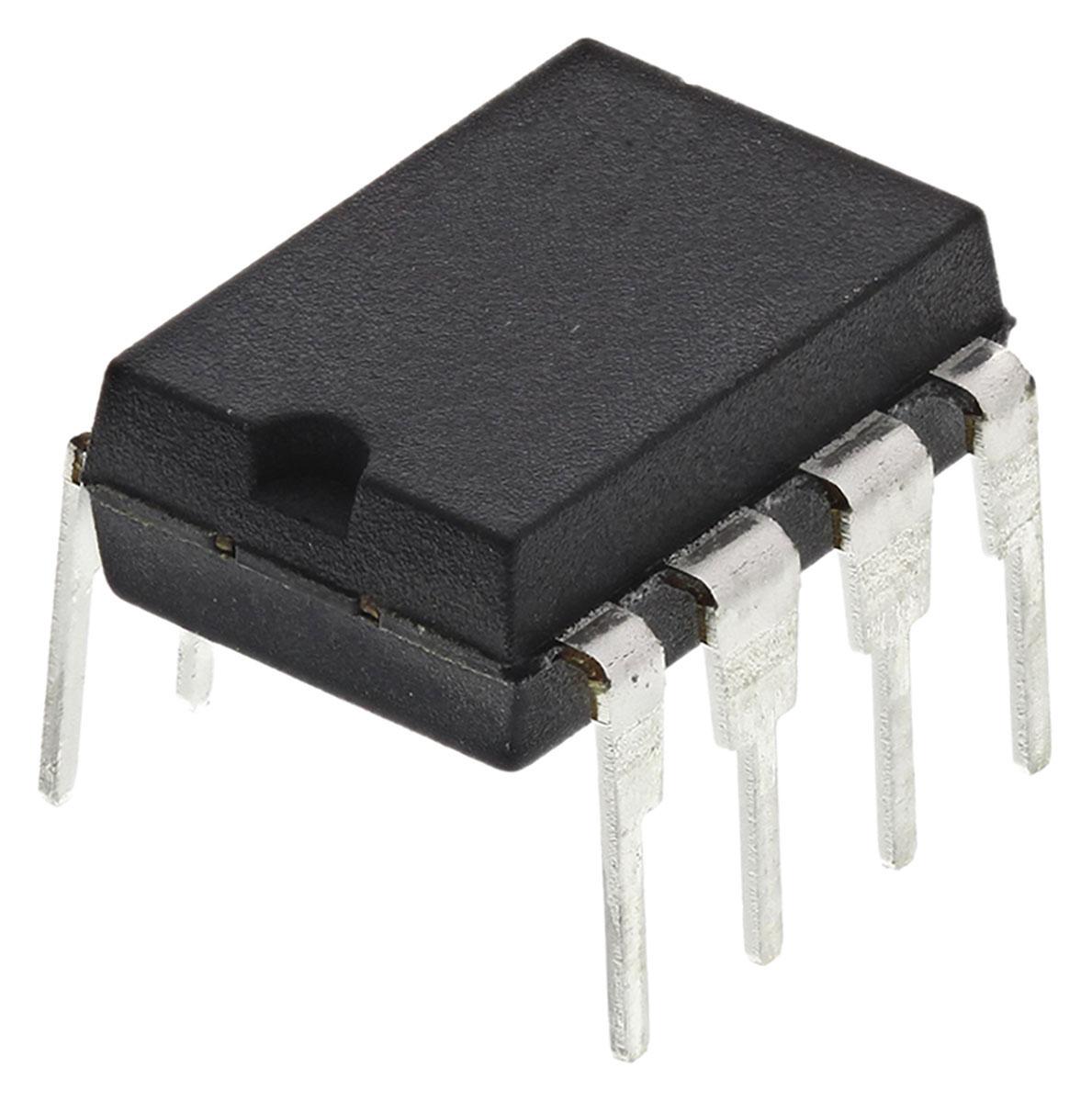

Analog Devices AD780BNZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.04 % 8-Pin, PDIP

AD780BNZ Analog Devices , Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.04 % 8-Pin, PDIP
AD780BNZ
Analog Devices

Product Information

Load Regulation:
150 (Series) μV/mA, 75 (Shunt) μV/mA
Dimensions:
10.16 x 7.11 x 4.95mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+85 °C
Line Regulation:
10 μV/V
Height:
4.95mm
Width:
7.11mm
Length:
10.16mm
Initial Accuracy:
±0.04 %
Package Type:
PDIP
Maximum Output Voltage:
3 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
2.5 V
Nominal Voltage:
2.5 V, 3V
Reference Type:
Programmable
Maximum Output Current:
10mA
Pin Count:
8
Maximum Input Voltage:
36 V
Topology:
Series/Shunt
Checking for live stock

This is Adjustable Series/Shunt Voltage Reference 2.5 V 3 V ±0.04 % 8-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD780BNZ. Load Regulation - 150 (series) μv/ma, 75 (shunt) μv/ma. The given dimensions of the product include 10.16 x 7.11 x 4.95mm. The product is available in through hole configuration. It has a maximum operating temperature of +85 °c. Has a line regulation of 10 μv/v. In addition, the height is 4.95mm. Furthermore, the product is 7.11mm wide. Its accurate length is 10.16mm. Its initial accuracy is approximately ±0.04 % . The package is a sort of pdip. Its output voltage (maximum) includes 3 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 2.5 v minimum output voltage. The nominal voltage of the product is 2.5 v, 3v. The product has a reference of programmable type. Featuring 10ma of maximum output current. It contains 8 pins. 36 v is the maximum voltage of the bespoke product. Topology includes series/shunt.
