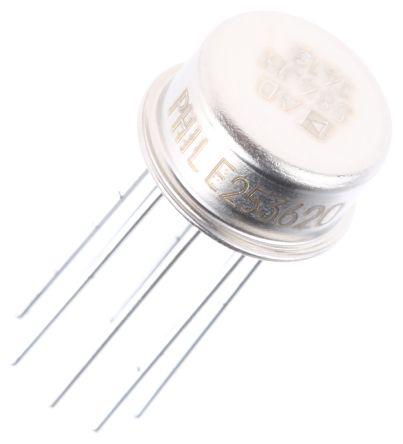

Analog Devices AD584JH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99

Enrgtech Part No: ET13857087
|
Manufacturer Part No:
AD584JH
|
Manufacturer: Analog Devices

AD584JH Analog Devices , Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99

Product Information

Load Regulation:

50 ppm/mA

Dimensions:

8.5 (Dia.) x 4.7mm

Mounting Type:

Through Hole

Maximum Operating Temperature:

+70 °C

Line Regulation:

0.005 %/V

Maximum Input Voltage:

15 V

Height:

4.7mm

Width:

8.5mm

Initial Accuracy:

±0.3 %

Package Type:

TO-99

Maximum Output Voltage:

10 V

Minimum Operating Temperature:

0 °C

Checking for live stock

This is Adjustable Series Voltage Reference 2.5 V 5 V 7.5 V 10 V ±0.3 % 8-Pin TO-99 manufactured by Analog Devices. The manufacturer part number is AD584JH. Load Regulation - 50 ppm/ma. The given dimensions of the product include 8.5 (dia.) x 4.7mm. The product is available in through hole configuration. It has a maximum operating temperature of +70 °c. Has a line regulation of 0.005 %/v. 15 v is the maximum voltage of the bespoke product. In addition, the height is 4.7mm. Furthermore, the product is 8.5mm wide. Its initial accuracy is approximately ±0.3 % . The package is a sort of to-99. Its output voltage (maximum) includes 10 v. Whereas, the minimum operating temperature of the product is 0 °c. The nominal voltage of the product is 2.5 v, 5 v, 7.5 v, 10v. The product has a reference of programmable type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series.

AD584, Pin Programmable Precision Voltage Reference(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search AD584JH on website for other similar products.

We accept all major payment methods for all products including ET13857087. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with AD584JH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Voltage References category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices AD584JH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD584JH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13857087 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13857087.

Yes. We ship AD584JH Internationally to many countries around the world.
