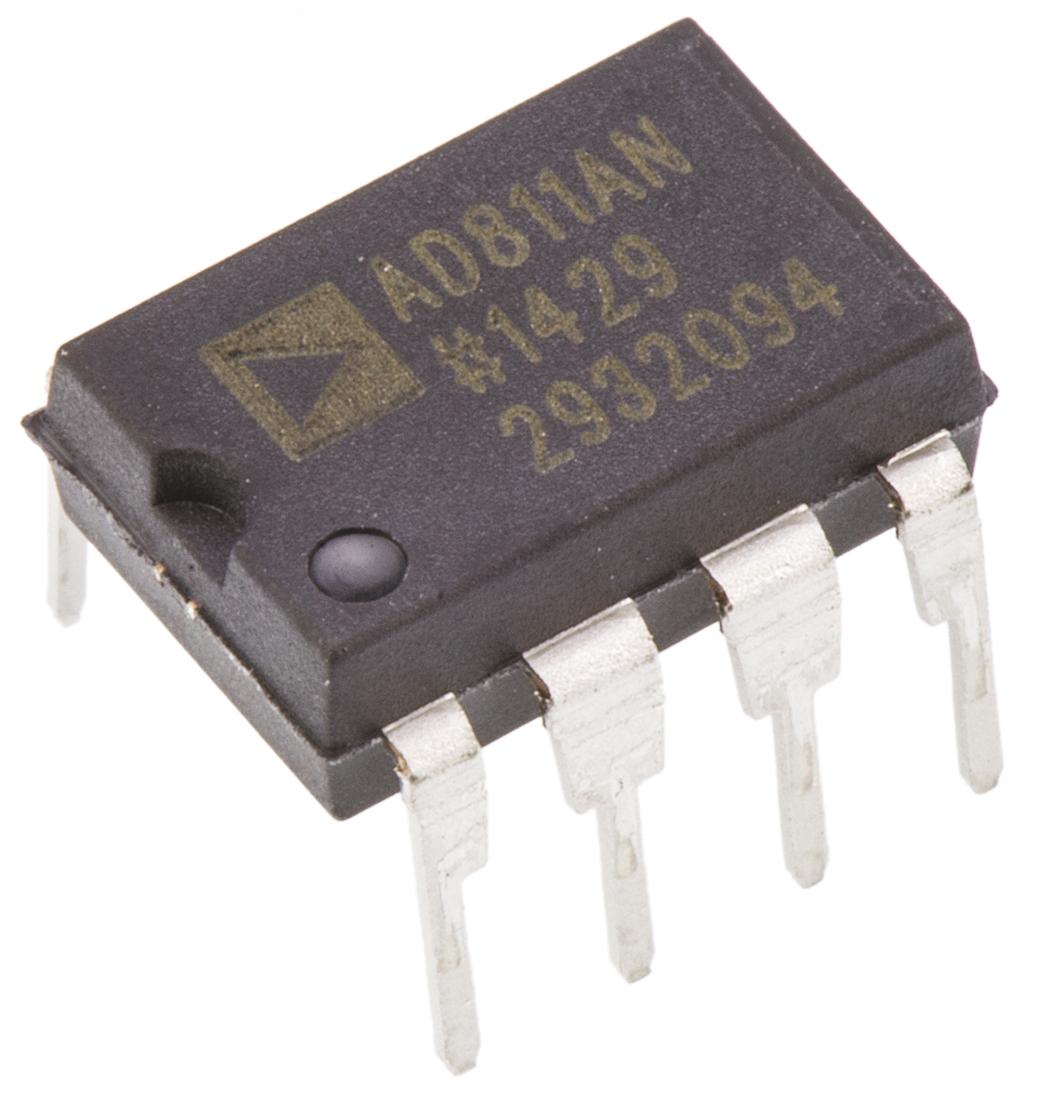

Analog Devices AD811ANZ, Video Amp 2500V/μs, 8-Pin PDIP

AD811ANZ Analog Devices , Video Amp 2500V/μs, 8-Pin PDIP
AD811ANZ
Analog Devices

Product Information

Typical Dual Supply Voltage:
15 V, 5V
Dimensions:
9.27 x 7.24 x 3.43mm
Mounting Type:
Through Hole
Typical Slew Rate:
2500V/µs
Power Supply Type:
Dual
Number of Channels per Chip:
1
Height:
3.43mm
Width:
7.24mm
Length:
9.27mm
Package Type:
PDIP
Minimum Operating Temperature:
-40 °C
IC Type:
Video Amplifier IC
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Video Amp 2500V/μs 8-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD811ANZ. While 15 v, 5v is the typical dual supply voltage. The given dimensions of the product include 9.27 x 7.24 x 3.43mm. The product is available in through hole configuration. Furthermore, it has a typical 2500v/µs of slew rate. It is a type of dual power supply. It comprises 1 channels per chip. In addition, the height is 3.43mm. Furthermore, the product is 7.24mm wide. Its accurate length is 9.27mm. The package is a sort of pdip. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, it includes video amplifier ic type IC . It has a maximum operating temperature of +85 °c. It contains 8 pins.
