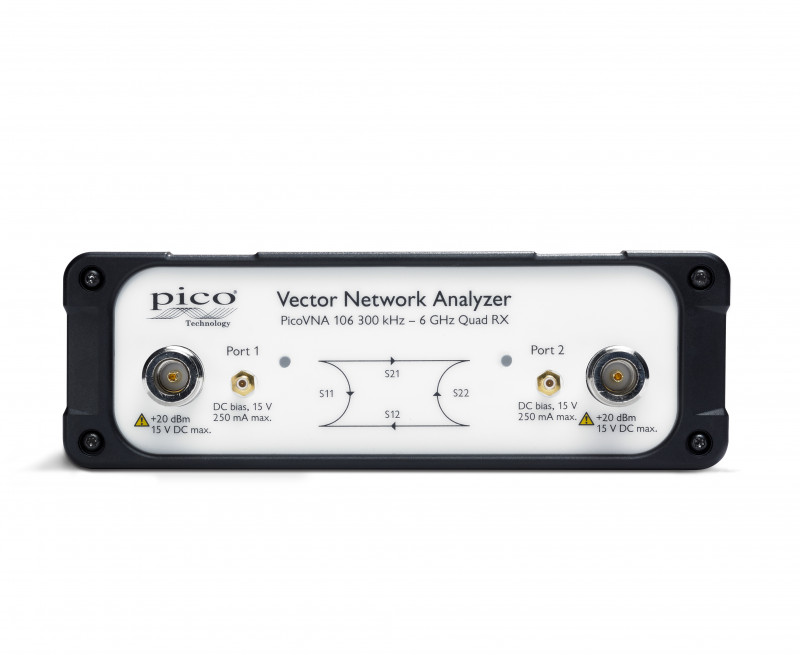

Pico Technology, PicoVNA 106

PicoVNA-106 Pico Technology, PicoVNA 106
PicoVNA 106
PicoVNA 106
Pico Technology

Product Information

Test Port Connector Type:
N Type Female
Frequency Range:
300 kHz → 6GHz
Sweep Rate:
5500/s
Dynamic Range:
118 dB
Trace Noise:
0.005dB
S-Parameters:
S11, S21, S12, S22
IF Bandwidth:
10 Hz to 140 kHz
Power Supply:
12 Vdc 22 W
Plug Type:
US/EU/UK
Time Domain Display Included:
Yes
Number of Test Ports:
2
Port Bias-Ts:
Yes
Number of Sweep Points:
10001
Number of Test Receivers:
4
Form Factor:
PC USB
Test Port Power:
6 dBm to -20dBm
RoHs Compliant
Checking for live stock

This is manufactured by Pico Technology. The manufacturer part number is PicoVNA 106. In addition, it has a Test Port Connector of n type female . The frequency range includes 300 khz → 6ghz. In addition, the product has a Sweep Rate of 5500/s Moreover, it has a Dynamic Range 118 db . Moreover, it has a Trace Noise of 0.005db The S-Parameters of the product is s11, s21, s12, s22 10 hz to 140 khz is the IF Bandwidth of the product It includes a/an 12 vdc 22 w power supply . The plug is a highly reliable us/eu/uk with long service life. It has a Time Domain Display Included yes Moreover, it has 2 Test Ports . It has a Port Bias-Ts Included yes Additionally, the Number of Sweep Points are 10001 The Number of Test Receivers in the product is 4 It has a form factor of pc usb. The product offers a Test Port Power of 6 dbm to -20dbm .

pdf icon
Quick Start Guide(Technical Reference)
pdf icon
UK Declaration of Conformity(Technical Reference)
pdf icon
FCC Declaration of Conformity(Technical Reference)
pdf icon
PicoVNA 106 Datasheet(Technical Reference)
pdf icon
EU Declaration of Conformity(Technical Reference)
pdf icon
User guide(Technical Reference)
