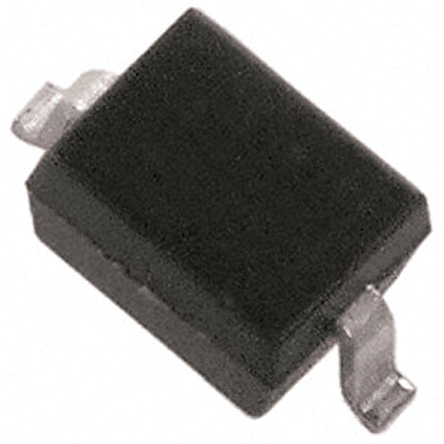

Infineon BBY5503WE6327HTSA1 Varactor, 5.5pF min, 2:1 Tuning Ratio, 16V, 2-Pin SOD-323

BBY5503WE6327HTSA1 Infineon Varactor, 5.5pF min, 2:1 Tuning Ratio, 16V, 2-Pin SOD-323
Infineon

Product Information

Tuning Ratio Test Condition:
10 V, 2 V
Dimensions:
1.7 x 1.25 x 0.85mm
Mounting Type:
Surface Mount
Application:
VCO in Mobile Communication
Maximum Reverse Voltage:
16V
Minimum Tuning Ratio:
2
Height:
0.85mm
Width:
1.25mm
Length:
1.7mm
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Minimum Diode Capacitance:
5.5pF
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Varactor 5.5pF min 2:1 Tuning Ratio 16V 2-Pin SOD-323 manufactured by Infineon. The manufacturer part number is BBY5503WE6327HTSA1. It has a tuning ratio of 10 v, 2 v test condition . The given dimensions of the product include 1.7 x 1.25 x 0.85mm. The product is available in surface mount configuration. Applications Information involves vco in mobile communication. Moreover, the product has a maximum 16v reverse voltage . With 2 minimum tuning ratio . In addition, the height is 0.85mm. Furthermore, the product is 1.25mm wide. Its accurate length is 1.7mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. With 5.5pf minimum diode capacitance . It has a maximum operating temperature of +150 °c. The diode features a single configuration. It contains 2 pins.

pdf icon
BBY55 series Varicap Tuning Diodes(Technical Reference)
