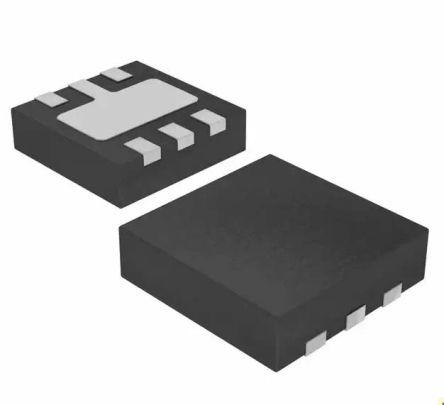

DiodesZetex AP22814ASN-7, USB Power Switch, High Side, 65mΩ, 1.6 V min. 5 + Tab-Pin, U-DFN2020

AP22814ASN-7 DiodesZetex , USB Power Switch, High Side, 65mΩ, 1.6 V min. 5 + Tab-Pin, U-DFN2020
DiodesZetex

Product Information

Number of Outputs:
1
Dimensions:
2.07 x 2.07 x 0.58mm
Mounting Type:
Surface Mount
Minimum Output Current:
3A
Minimum Operating Temperature:
-40 °C
Maximum Input Voltage:
2.4 V
Height:
0.58mm
Width:
2.07mm
Length:
2.07mm
Current Limit:
3.8A
Package Type:
U-DFN2020
Switch On Resistance:
65mΩ
Minimum Input Voltage:
1.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5 + Tab
Switch Type:
High Side
RoHs Compliant
Checking for live stock

This is USB Power Switch High Side 65mΩ 1.6 V min. 5 + Tab-Pin U-DFN2020 manufactured by DiodesZetex. The manufacturer part number is AP22814ASN-7. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 2.07 x 2.07 x 0.58mm. The product is available in surface mount configuration. Additionally, it is offered with 3a minimum output current . Whereas, the minimum operating temperature of the product is -40 °c. 2.4 v is the maximum voltage of the bespoke product. In addition, the height is 0.58mm. Furthermore, the product is 2.07mm wide. Its accurate length is 2.07mm. Additionally, it has 3.8a current limit . The package is a sort of u-dfn2020. In addition, it has about 65mω switch on resistance . The product has 1.6 v of minimum input voltage. It has a maximum operating temperature of +85 °c. It contains 5 + tab pins. Quality product with a high side switch type.

pdf icon
AP22804 / AP22814, Single Channel Power Distribution Load Switch(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
