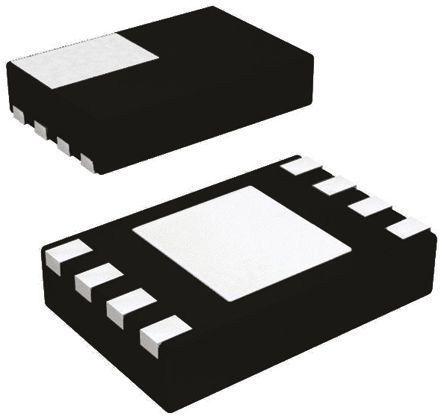

DiodesZetex AP2142AMPG-13, Dual USB Power Switch, High Side, 125mΩ, 2.7 V min. 8-Pin, U-DFN3030

AP2142AMPG-13 DiodesZetex , Dual USB Power Switch, High Side, 125mΩ, 2.7 V min. 8-Pin, U-DFN3030
DiodesZetex

Product Information

Number of Outputs:
2
Dimensions:
3.05 x 3.05 x 0.58mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
Internally Limited
Minimum Output Current:
0mA
Minimum Operating Temperature:
-40 °C
Maximum Input Voltage:
5.5 V
Height:
0.58mm
Width:
3.05mm
Length:
3.05mm
Current Limit:
0.85A
Package Type:
U-DFN3030
Switch On Resistance:
125mΩ
Minimum Input Voltage:
2.7 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Switch Type:
High Side
RoHs Compliant
Checking for live stock

This is Dual USB Power Switch High Side 125mΩ 2.7 V min. 8-Pin U-DFN3030 manufactured by DiodesZetex. The manufacturer part number is AP2142AMPG-13. Additionally, the product is supplied with 2 outputs. The given dimensions of the product include 3.05 x 3.05 x 0.58mm. The product is available in surface mount configuration. Provides up to internally limited maximum power dissipation. Additionally, it is offered with 0ma minimum output current . Whereas, the minimum operating temperature of the product is -40 °c. 5.5 v is the maximum voltage of the bespoke product. In addition, the height is 0.58mm. Furthermore, the product is 3.05mm wide. Its accurate length is 3.05mm. Additionally, it has 0.85a current limit . The package is a sort of u-dfn3030. In addition, it has about 125mω switch on resistance . The product has 2.7 v of minimum input voltage. It has a maximum operating temperature of +85 °c. It contains 8 pins. Quality product with a high side switch type.

pdf icon
Datasheet(Technical Reference)
pdf icon
0.5A Dual Channel Current-Limited Power Switch With Output Discharge Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
