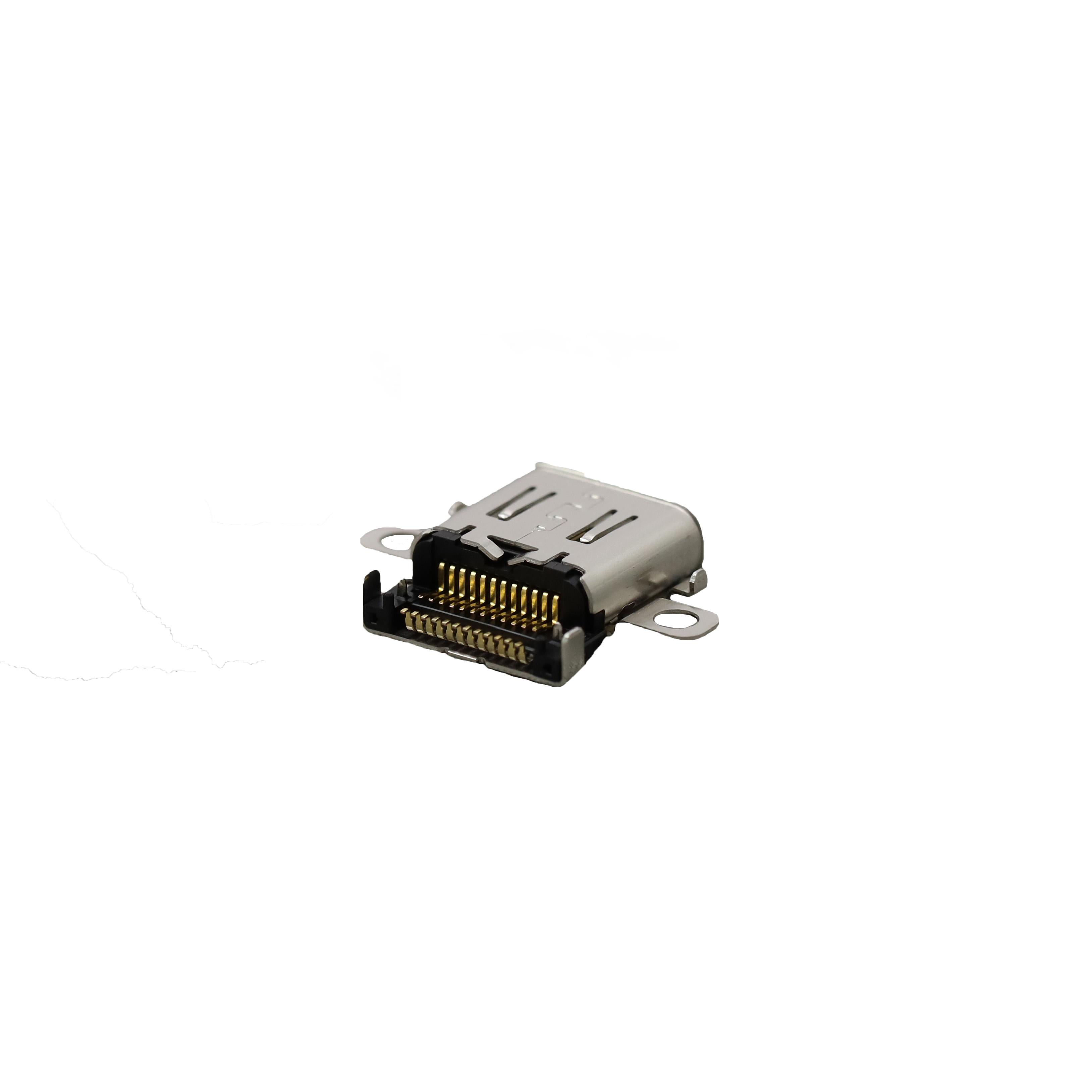

JAE Electronics DX07BN24JA2R1300

DX07BN24JA2R1300 JAE Electronics
JAE Electronics

Product Information

Voltage - Rated:
48V
Mounting Feature:
Horizontal, Mid Mount
Operating Temperature:
-30°C ~ 80°C
Shell/Shielding Material:
Steel, Stainless
standardLeadTime:
12 Weeks
Shielding:
Shielded
HTSUS:
8536.69.4040
title:
DX07BN24JA2R1300
Specifications:
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Material Flammability Rating:
-
Manufacturer:
JAE Electronics
Insulation Color:
Black
Gender:
Receptacle
Connector Type:
USB-C (USB TYPE-C)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Termination:
Solder
Mating Cycles:
10000
Current Rating (Amps):
0.25A, 1.25A, 5A, 6.25A
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Series:
DX07
Packaging:
Tape & Reel (TR)
Number of Contacts:
24
Base Product Number:
DX07BN24
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is DX07BN24JA2R1300. It also exhibits voltage rating of 48v. The product's mounting feature includes horizontal, mid mount. The product has -30°c ~ 80°c operating temperature range. The shell is manufactured from highly shielding steel, stainless material. It has a long 12 weeks standard lead time. Furthermore, the product is shielded with shielded. It is assigned with possible HTSUS value of 8536.69.4040. Specifications include usb 3.2 gen 2 (usb 3.1 gen 2, superspeed + (usb 3.1)). The jae electronics's product offers user-desired applications. In addition, black is the insulation color of the product. In addition, receptacle is the available "Gender" of the product. usb-c (usb type-c) Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product features solder termination style. It provides best efficiency with mating cycles of 10000. Additionally, the product's output is 0.25a, 1.25a, 5a, 6.25a. The product is available in board edge, cutout; surface mount; through hole, right angle configuration. The product dx07, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product contains 24 contacts. Moreover, it corresponds to dx07bn24, a base product number of the product. The product is designated with the ear99 code number.
