Molex 1054540101

1054540101 Molex
1054540101
Molex

Product Information

Detailed Description:

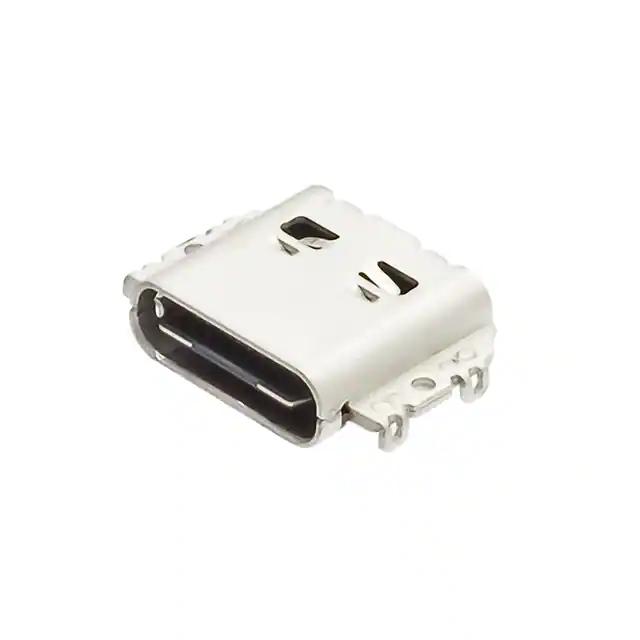

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle
Voltage - Rated:
30VAC/DC
Mounting Feature:
Horizontal, Mid Mount
Operating Temperature:
-30°C ~ 85°C
Shell/Shielding Material:
Steel, Stainless
Base Part Number:
105454
Shielding:
Shielded
Specifications:
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Material Flammability Rating:
UL94 V-0
Manufacturer:
Molex
Insulation Color:
Black
Gender:
Receptacle
Connector Type:
USB-C (USB TYPE-C)
Contact Finish:
Gold
Number of Ports:
1
Termination:
Solder
Mating Cycles:
10000
Current Rating (Amps):
0.25A, 1.25A, 5A
Mounting Type:
Board Cutout, Surface Mount, Right Angle
Series:
105454
Packaging:
Cut Tape (CT)
Customer Reference:
Number of Contacts:
24
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1054540101. It features usb-c (usb type-c) usb 3.2 gen 2 (usb 3.1 gen 2, superspeed + (usb 3.1)) receptacle connector 24 position board cutout, surface mount, right angle. It also exhibits voltage rating of 30vac/dc. The product's mounting feature includes horizontal, mid mount. The product has -30°c ~ 85°c operating temperature range. The shell is manufactured from highly shielding steel, stainless material. Base Part Number: 105454. Furthermore, the product is shielded with shielded. Specifications include usb 3.2 gen 2 (usb 3.1 gen 2, superspeed + (usb 3.1)). It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. In addition, black is the insulation color of the product. In addition, receptacle is the available "Gender" of the product. usb-c (usb type-c) Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. This product features 1 number of ports. The product features solder termination style. It provides best efficiency with mating cycles of 10000. Additionally, the product's output is 0.25a, 1.25a, 5a. The product is available in board cutout, surface mount, right angle configuration. The product 105454, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product contains 24 contacts.

pdf icon
Multiple Devices Location 15/Aug/2019(PCN Assembly/Origin)
pdf icon
USB Type C Datasheet(Datasheets)
pdf icon
1054540101 Datasheet(Datasheets)
pdf icon
Multiple Devices 28/Feb/2019(PCN Obsolescence/ EOL)
