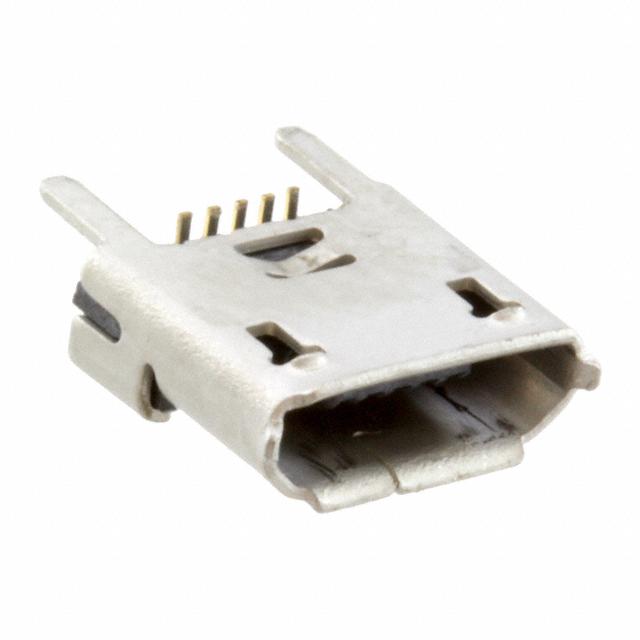

Molex 105133 Series Number, Vertical SMT, Type Micro B Version 2.0 Micro USB Connector Receptacle

1051330001 Molex 105133 Series Number, Vertical SMT, Type Micro B Version 2.0 Micro USB Connector Receptacle
1051330001
Molex

Product Information

Current Rating:
1.8A
USB Version:
2.0
Mounting Type:
Surface Mount
Voltage Rating:
30.0 V
Gender:
Female
USB Type:
Micro B
Minimum Operating Temperature:
-30.0°C
Termination Method:
Solder
Contact Material:
Copper Alloy
Maximum Operating Temperature:
+85°C
Body Orientation:
Straight
Series Number:
105133
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Vertical
Operating Temperature:
-35°C ~ 85°C
Shell/Shielding Material:
Steel, Stainless
standardLeadTime:
13 Weeks
Shielding:
Shielded
Voltage - Rated:
30VAC
Specifications:
USB 2.0
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
1051330001 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3313407
Package:
Tape & Reel (TR)
Gender:
Receptacle
Connector Type:
USB - micro B
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Termination:
Solder
Mating Cycles:
10000
Current Rating (Amps):
1A, 1.8A
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount
Series:
105133
Number of Contacts:
5
Base Product Number:
105133
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 105133 Series Number Vertical SMT Type Micro B Version 2.0 Micro USB Connector Receptacle manufactured by Molex. The manufacturer part number is 1051330001. The product has a current rating of 1.8a. It is of 2.0 type USB version . The product is available in surface mount configuration. Moreover, the product has a nominal 30.0 v voltage rating. In addition, female is the available "Gender" of the product. It contains a/an micro b type USB . Whereas, the minimum operating temperature of the product is -30.0°c. It allows solder termination method. The product is made from sturdy copper alloy materials. It has a maximum operating temperature of +85°c. It has straight body orientation. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product's mounting feature includes vertical. The product has -35°c ~ 85°c operating temperature range. The shell is manufactured from highly shielding steel, stainless material. It has a long 13 weeks standard lead time. Furthermore, the product is shielded with shielded. It also exhibits voltage rating of 30vac. Specifications include usb 2.0. In addition, black is the insulation color of the product. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . In addition, receptacle is the available "Gender" of the product. usb - micro b Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product features solder termination style. It provides best efficiency with mating cycles of 10000. Additionally, the product's output is 1a, 1.8a. The splendid features of the product include pick and place. The product 105133, is a highly preferred choice for users. The product contains 5 contacts. Moreover, it corresponds to 105133, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
1051330001 RoHS Cert of Compliance(Environmental Information)
pdf icon
10513300yy Alt Resin Source 25/Feb/2022(PCN Assembly/Origin)
pdf icon
10513300yy 22/Oct/2021(PCN Design/Specification)
pdf icon
Mult Dev Design Chgs 19/May/2020(PCN Design/Specification)
pdf icon
105133 Series 21/Jul/2015(PCN Other)
pdf icon
1051330001(Datasheets)
pdf icon
105133 Series 03/Oct/2015(PCN Packaging)
pdf icon
105133-0001.pdf(3D Drawings)
