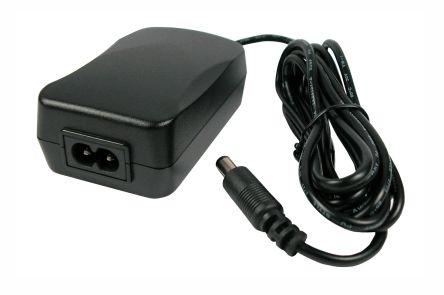

Phihong 5V dc Power Supply for Low-Power Computers, Networking, Peripherals & Terminals, Portable Equipment

PSAA15W-050L6 Phihong 5V dc Power Supply for Low-Power Computers, Networking, Peripherals & Terminals, Portable Equipment
PSAA15W-050L6
PSAA15W-050L6
ET16826769
ET16826769
Phihong

Product Information

Maximum Temperature:
+40°C
Minimum Temperature:
0°C
Application:
Low-Power Computers, Networking, Peripherals & Terminals, Portable Equipment
Protection Features:
Over Current Protection, Over Voltage Protection, Short Circuit Protection
Output Current Range:
0 → 3A
Maximum Input Current:
500mA
Holdup Time:
10ms
Standards Met:
CB, CE, CUL/UL, EN 55022 Class B, FCC Class B, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Input Connector:
IEC 60320-C8
Input Frequency Range:
47 → 63Hz
Energy Efficiency Level:
VI
Overall Length:
81.2mm
Overall Depth:
29.8mm
Number of Outputs:
1
Operating Temperature Range:
0 → +40 °C
Rated Output Power:
15W
Ripple And Noise:
70mV Pk-Pk
Output Voltage Rating:
5 V dc
Special Features:
Class B EMI, Compact Size
Power Signal Conversion Type:
AC-DC
Overall Dimensions:
81.2 x 50 x 29.8mm
Weight:
140g
Mounting Type:
Desktop
Line Regulation Range:
±5%
Series:
PSAA15W
Overall Width:
50mm
Cable Length:
1000mm
Output Connection Type:
DC Plug
Load Regulation Range:
±5%
Input Voltage Range:
90 → 264 V ac
RoHs Compliant
Checking for live stock

This is 5V dc Power Supply for Low-Power Computers Networking Peripherals & Terminals Portable Equipment manufactured by Phihong. The manufacturer part number is PSAA15W-050L6. The product has +40°c maximum temperature. While its minimum temperature is 0°c. Applications Information involves low-power computers, networking, peripherals & terminals, portable equipment. It provides robust protection features, such as over current protection, over voltage protection, short circuit protection. Moreover, its output current range is 0 → 3a . While its maximum input current includes 500ma. Additionally, its holdup time is about 10ms . The product complies with all safety standards, such as cb, ce, cul/ul, en 55022 class b, fcc class b, iec 61000-4-11, iec 61000-4-2, iec 61000-4-3, iec 61000-4-4, iec 61000-4-5, iec 61000-4-6. Input connector of iec 60320-c8. It has 47 → 63hz input frequency range . Furthermore, its energy efficiency level is vi . It has an overall length of 81.2mm. Similarly, the product has 29.8mm of overall depth. Additionally, the product is supplied with 1 outputs. The product has 0 → +40 °c of operating temperature range. It has about 15w rated output power . Carries 70mv pk-pk ripple and noise. It has a typical 5 v dc output voltage rating . The product also provides special features, such as class b emi, compact size. In addition, it has ac-dc type power signal conversion . Furthermore, the product has an overall dimensions of 81.2 x 50 x 29.8mm. The typical product's weight is 140g. The product is available in desktop configuration. Moreover, the product has about ±5% of line regulation range . The product psaa15w, is a highly preferred choice for users. It has an overall width of 50mm. Furthermore, the cable has a 1000mm of length. It has a standard dc plug type output connection . It has ±5% load regulation range . It has 90 → 264 v ac of input voltage range.
