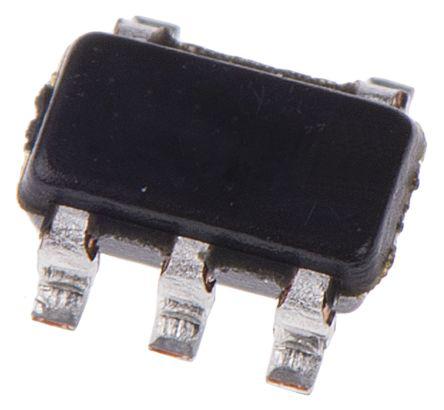

This is 2-Input NAND Schmitt Trigger Logic Gate 2 → 5.5 V 5-Pin SC-88A manufactured by ON Semiconductor. The manufacturer part number is M74VHC1G132DFT2G. The given dimensions of the product include 2.2 x 1.35 x 1mm. The logic family is vhc. Furthermore, the product is 1.35mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 19.6 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has abuffer, cmos output. The package is a sort of sc-88a. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.2mm. It contains 5 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nand. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - yes. It carries 1 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
