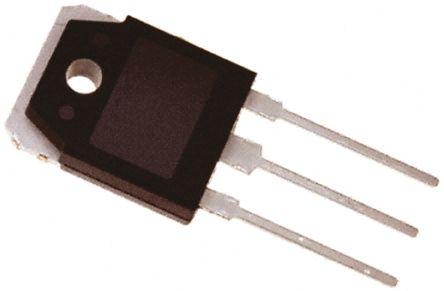

FGA30N120FTDTU Fairchild IGBT, 60 A 1200 V, 3-Pin TO-3PN

(0)

Product Information

Dimensions:

15.8 x 5 x 20.1mm

Mounting Type:

Through Hole

Maximum Power Dissipation:

339 W

Maximum Continuous Collector Current:

60 A

Maximum Collector Emitter Voltage:

1200 V

Height:

20.1mm

Width:

5mm

Length:

15.8mm

Maximum Gate Emitter Voltage:

±25V

Package Type:

TO-3PN

Minimum Operating Temperature:

-55 °C

Channel Type:

Checking for live stock

This is Fairchild IGBT 60 A 1200 V 3-Pin TO-3PN manufactured by Fairchild Semiconductor. The manufacturer part number is FGA30N120FTDTU. The given dimensions of the product include 15.8 x 5 x 20.1mm. The product is available in through hole configuration. Provides up to 339 w maximum power dissipation. The product has a maximum 60 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 20.1mm. Furthermore, the product is 5mm wide. Its accurate length is 15.8mm. It offers a maximum ±25v gate emitter voltage . The package is a sort of to-3pn. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

FGA30N120FTD, 1200V, 30A Field Stop Trench IGBT(Technical Reference)
