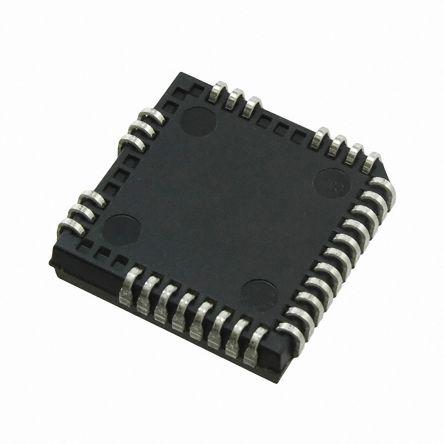

Infineon IR21363JPBF Hex Half Bridge MOSFET Power Driver, 350mA, 12 → 20 V, Non-Inverting, PLCC 32-Pin

IR21363JPBF Infineon Hex Half Bridge MOSFET Power Driver, 350mA, 12 → 20 V, Non-Inverting, PLCC 32-Pin
Infineon

Product Information

Number of Outputs:
6
Peak Output Current:
350mA
Dimensions:
16.66 x 16.66 x 4.57 (With Pin)mm
Bridge Type:
Half Bridge
High and Low Sides Dependency:
Independent
Minimum Operating Supply Voltage:
12 V
Number of Drivers:
6
Height:
4.57 (With Pin)mm
Width:
16.66mm
Length:
16.66mm
Package Type:
PLCC
Driver Type:
High and Low Side
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+125 °C
Mounting Type:
Surface Mount
Input Logic Compatibility:
CMOS, LSTTL
Driver Configuration:
Non-Inverting
Pin Count:
32
Maximum Operating Supply Voltage:
20 V
RoHs Compliant
Checking for live stock

This is Hex Half Bridge MOSFET Power Driver 350mA 12 → 20 V Non-Inverting PLCC 32-Pin manufactured by Infineon. The manufacturer part number is IR21363JPBF. Additionally, the product is supplied with 6 outputs. It offers a standard 350ma peak output current . The given dimensions of the product include 16.66 x 16.66 x 4.57 (with pin)mm. It contains a/an half bridge type bridge . In addition, it has a/an independent high and low sides dependency . While its minimum operating supply voltage is 12 v. Number of Drivers equals 6. In addition, the height is 4.57 (with pin)mm. Furthermore, the product is 16.66mm wide. Its accurate length is 16.66mm. The package is a sort of plcc. It has a/an high and low side type driver . Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c. The product is available in surface mount configuration. Moreover, it has a cmos, lsttl input logic compatibility . Moreover, it has a/an non-inverting driver configuration . It contains 32 pins. It has 20 v maximum operating supply voltage.

pdf icon
Datasheet(Technical Reference)
pdf icon
IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J&S) & (PbF), 3-Phase Bridge Driver(Technical Reference)
