Dimensions:
192 x 66 x 27mm
Power Source:
Battery
DC Current Measurement Resolution:
10 mA dc, 100 mA dc
Maximum Conductor Size:
22 Dia.mm
Width:
66mm
Battery Life:
60 h
Resistance Measurement Resolution:
1kΩ
AC Current Measurement Resolution:
10 mA ac, 100 mA ac
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac

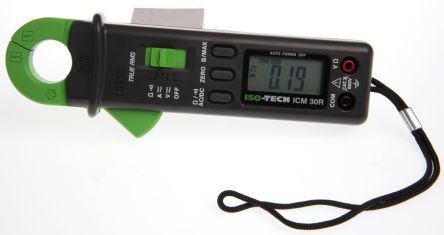

Model Number:
ICM30R
Best AC Voltage Accuracy:
+ 5 Digits, ±2%
Absolute Maximum AC Current Measurement:
300A ac
Battery Type:
AAA
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT lll
Length:
192mm
Calibrated:
RSCAL
Absolute Maximum DC Current Measurement:
300A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
+ 5 Digits, ±2.5%
Best DC Current Accuracy:
+ 5 Digits, ±3%
Weight:
205g
AC Voltage Measurement Resolution:
1 mV ac, 1 V ac, 10 mV ac, 100 mV ac, 100 μV ac
Best AC Current Accuracy:
+ 5 Digits, ±2%
Safety Category Voltage:
300V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
27mm
Safety Category:
CAT III 300V
Best DC Voltage Accuracy:
+ 5 Digits, ±0.5%
DC Voltage Measurement Resolution:
1 mV dc, 1 V dc, 10 mV dc, 100 mV dc, 100 μV dc
Clamp Meter Type:
Continuity, Current, Resistance, Voltage
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance
