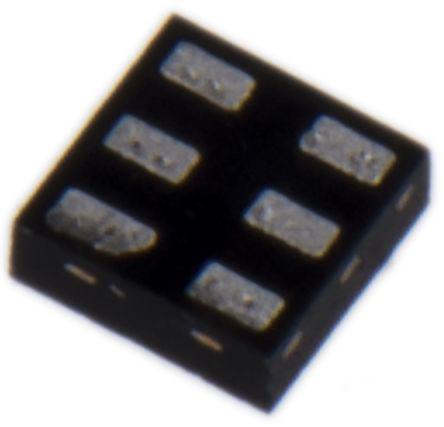

Nexperia 74AXP1G57GSH, 3-Input Multifunction Logic Gate, 0.7 → 2.75 V, 6-Pin XSON

74AXP1G57GSH Nexperia , 3-Input Multifunction Logic Gate, 0.7 → 2.75 V, 6-Pin XSON
74AXP1G57GSH
Nexperia

Product Information

Dimensions:
0.95 x 1.05 x 0.31mm
Logic Family:
AXP
Width:
1.05mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-8mA
Maximum Propagation Delay Time @ Maximum CL:
125 ns @ 5 pF
Minimum Operating Supply Voltage:
0.7 V
Output Type:
Voltage
Package Type:
XSON
Maximum Operating Temperature:
+85 °C
Number of Inputs per Gate:
3
Length:
0.95mm
Pin Count:
6
Maximum Operating Supply Voltage:
2.75 V
Mounting Type:
Surface Mount
Logic Function:
Multifunction
Height:
0.31mm
Minimum Operating Temperature:
-40 °C
Number of Elements:
1
Propagation Delay Test Condition:
5pF
RoHs Compliant
Checking for live stock

This is 3-Input Multifunction Logic Gate 0.7 → 2.75 V 6-Pin XSON manufactured by Nexperia. The manufacturer part number is 74AXP1G57GSH. The given dimensions of the product include 0.95 x 1.05 x 0.31mm. The logic family is axp. Furthermore, the product is 1.05mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 125 ns @ 5 pf maximum propagation delay time. While its minimum operating supply voltage is 0.7 v. Furthermore, it has avoltage output. The package is a sort of xson. It has a maximum operating temperature of +85 °c. It contains 3 inputs per gate . Its accurate length is 0.95mm. It contains 6 pins. It has 2.75 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes multifunction. In addition, the height is 0.31mm. Whereas, the minimum operating temperature of the product is -40 °c. It carries 1 elements. Features 5pf of propagation delay test condition.

pdf icon
74AXP1G57 Multi-Function Logic Gate datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 74AXP1G57GSH on website for other similar products.
We accept all major payment methods for all products including ET14108883. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74AXP1G57GSH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia 74AXP1G57GSH, 3-Input Multifunction Logic Gate, 0.7 → 2.75 V, 6-Pin XSON. You can also check on our website or by contacting our customer support team for further order details on Nexperia 74AXP1G57GSH, 3-Input Multifunction Logic Gate, 0.7 → 2.75 V, 6-Pin XSON.
