Name: MPMB75B120RH, MagnaChip
Brand: MagnaChip
SKU: ET14070338
Availability: PreOrder

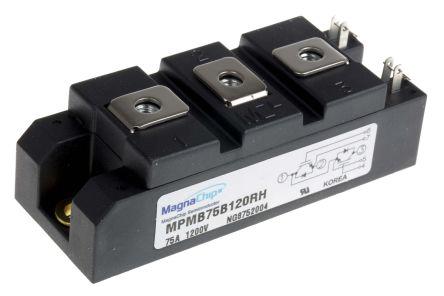

MPMB75B120RH MagnaChip , 7DM-1 Series IGBT Module, 75 A max, 1200 V, Panel Mount

(0)

Product Information

Dimensions:

93 x 35 x 31mm

Mounting Type:

Panel Mount

Maximum Power Dissipation:

500 W

Maximum Continuous Collector Current:

75 A

Maximum Collector Emitter Voltage:

1200 V

Configuration:

Series

Height:

31mm

Width:

35mm

Length:

93mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

7DM-1

Minimum Operating Temperature:

-55 °C

Checking for live stock

This is 7DM-1 Series IGBT Module 75 A max 1200 V Panel Mount manufactured by MagnaChip. The manufacturer part number is MPMB75B120RH. The given dimensions of the product include 93 x 35 x 31mm. The product is available in panel mount configuration. Provides up to 500 w maximum power dissipation. The product has a maximum 75 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in series configuration. In addition, the height is 31mm. Furthermore, the product is 35mm wide. Its accurate length is 93mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of 7dm-1. Whereas, the minimum operating temperature of the product is -55 °c. It has about 40khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 7 pins. The product offers series transistor configuration.

MPMB75B120RH, NPT & Rugged Type 1200V IGBT Module(Technical Reference)
