Dimensions:
4.9 x 3.9 x 1.575mm
Maximum Continuous Drain Current:
5 A, 7 A
Transistor Material:
Si
Width:
3.9mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
35 V

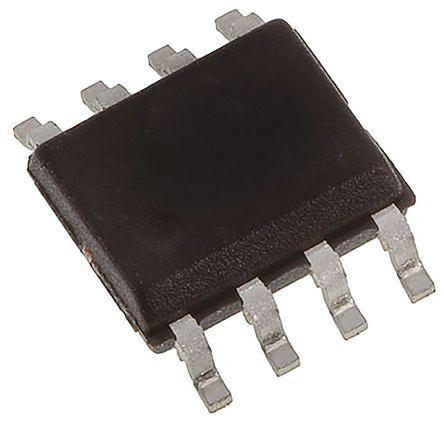

Package Type:
SOIC
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
5.5 nC @ 5 V, 5.7 nC @ 5 V
Channel Type:
N, P
Typical Input Capacitance @ Vds:
540 pF@ -15 V, 570 pF@ 15 V
Length:
4.9mm
Pin Count:
8
Typical Turn-Off Delay Time:
20 ns, 23 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.6 W, 2 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 (Q1) V, ±25 (Q2) V
Height:
1.575mm
Typical Turn-On Delay Time:
8 (N) ns, 12 (P) ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
37 mΩ, 87 mΩ
