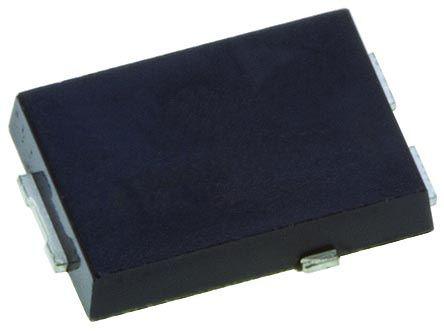

Vishay VS-8CSH02HM3/86A Dual SMT Diode, Common Cathode, 200V 8A, 25ns, 3-Pin TO-277A

VS-8CSH02HM3-86A Vishay VS-8CSH02HM3/86A Dual SMT Diode, Common Cathode, 200V 8A, 25ns, 3-Pin TO-277A
Vishay

Product Information

Dimensions:
6.15 x 4.35 x 1.2mm
Mounting Type:
Surface Mount
Peak Reverse Recovery Time:
25ns
Maximum Continuous Forward Current:
8A
Maximum Operating Temperature:
+175 °C
Peak Non-Repetitive Forward Surge Current:
130A
Maximum Forward Voltage Drop:
950mV
Height:
1.2mm
Peak Reverse Current:
80µA
Width:
4.35mm
Length:
6.15mm
Package Type:
TO-277A
Number of Elements per Chip:
2
Minimum Operating Temperature:
-65 °C
Diode Type:
Silicon Junction
Diode Configuration:
Common Cathode
Pin Count:
3
Peak Reverse Repetitive Voltage:
200V
RoHs Compliant
Checking for live stock

This is Dual SMT Diode Common Cathode 200V 8A 25ns 3-Pin TO-277A manufactured by Vishay. The manufacturer part number is VS-8CSH02HM3/86A. The given dimensions of the product include 6.15 x 4.35 x 1.2mm. The product is available in surface mount configuration. Moreover, it has a peak reverse recovery time about 25ns . Furthermore, its maximum continuous forward current constitutes 8a. It has a maximum operating temperature of +175 °c. Moreover, a bespoke product has 130a peak non-repetitive forward surge current. It features 950mv of maximum forward voltage drop. In addition, the height is 1.2mm. It has a typical 80µa peak reverse current . Furthermore, the product is 4.35mm wide. Its accurate length is 6.15mm. The package is a sort of to-277a. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is designed with a silicon junction diode. The diode features a common cathode configuration. It contains 3 pins. While having the peak reverse repetitive 200v.

pdf icon
Hyperfast Rectifier, 2 x 4 A FRED Pt Datasheet(Technical Reference)
