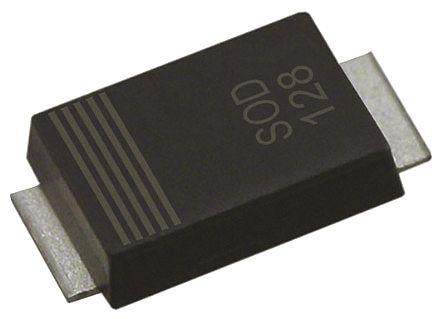

Nexperia PMEG6010EP SMT Schottky Diode, 60V 1A, 2-Pin SOD-128

PMEG6010EP Nexperia  SMT Schottky Diode, 60V 1A, 2-Pin SOD-128
Nexperia

Product Information

Dimensions:
4 x 2.7 x 1.1mm
Mounting Type:
Surface Mount
Maximum Continuous Forward Current:
1A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
50A
Maximum Forward Voltage Drop:
530mV
Height:
1.1mm
Peak Reverse Current:
60µA
Width:
2.7mm
Length:
4mm
Package Type:
SOD-128
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
60V
RoHs Compliant
Checking for live stock

This is SMT Schottky Diode 60V 1A 2-Pin SOD-128 manufactured by Nexperia. The manufacturer part number is PMEG6010EP. The given dimensions of the product include 4 x 2.7 x 1.1mm. The product is available in surface mount configuration. Furthermore, its maximum continuous forward current constitutes 1a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 50a peak non-repetitive forward surge current. It features 530mv of maximum forward voltage drop. In addition, the height is 1.1mm. It has a typical 60µa peak reverse current . Furthermore, the product is 2.7mm wide. Its accurate length is 4mm. The package is a sort of sod-128. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is designed with a schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 60v.

pdf icon
PMEG6010EP 1A low VF MEGA Schottky barrier rectifier datasheet(Technical Reference)
