Dimensions:
1.8 x 0.9 x 0.85mm
Maximum Continuous Drain Current:
480 mA
Transistor Material:
Si
Width:
0.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.3V
Maximum Drain Source Resistance:
850 mΩ

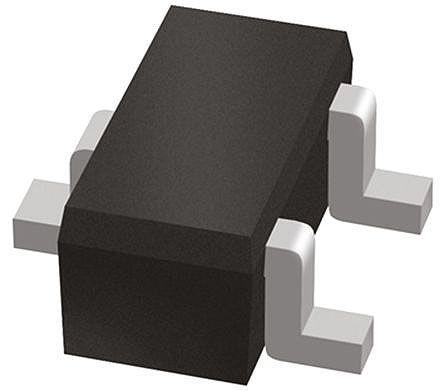

Package Type:
SOT-416
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
0.76 nC @ 4.5 V
Channel Type:
P
Typical Input Capacitance @ Vds:
58 pF @ -10 V
Length:
1.8mm
Pin Count:
3
Typical Turn-Off Delay Time:
80 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
0.77 W
Maximum Gate Source Voltage:
±8 V
Height:
0.85mm
Typical Turn-On Delay Time:
18 ns
Minimum Operating Temperature:
-55 °C
