Category:
Power MOSFET
Dimensions:
3.21 x 3.21 x 1.12mm
Maximum Continuous Drain Current:
24 A
Transistor Material:
Si
Width:
3.21mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
30 V

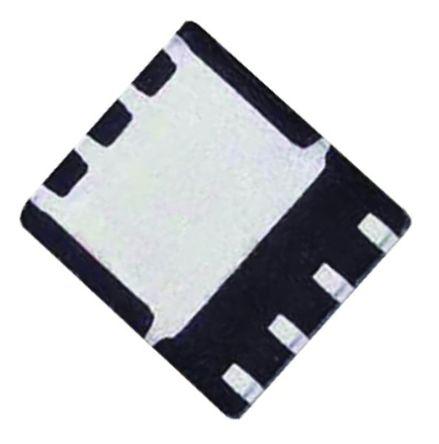

Package Type:
PowerPAK 1212
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
700 pF @ 15 V
Length:
3.21mm
Pin Count:
8
Forward Transconductance:
20S
Typical Turn-Off Delay Time:
10 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
23 W
Maximum Gate Source Voltage:
±20 V
Height:
1.12mm
Typical Turn-On Delay Time:
15 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
33 mΩ
