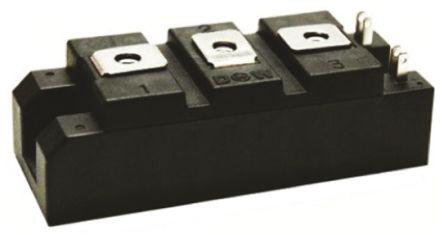

MagnaChip MPMC100B120RH, 7DM-2 Series IGBT Module, 100 A max, 1200 V, Panel Mount

Enrgtech Part No: ET13964270
|
Manufacturer Part No:
MPMC100B120RH
|
Manufacturer: MagnaChip

MPMC100B120RH MagnaChip , 7DM-2 Series IGBT Module, 100 A max, 1200 V, Panel Mount

Product Information

Configuration:

Series

Dimensions:

94 x 48 x 22mm

Mounting Type:

Panel Mount

Maximum Power Dissipation:

694 W

Maximum Continuous Collector Current:

100 A

Maximum Collector Emitter Voltage:

1200 V

Height:

22mm

Width:

48mm

Length:

94mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

7DM-2

Minimum Operating Temperature:

-55 °C

Checking for live stock

This is 7DM-2 Series IGBT Module 100 A max 1200 V Panel Mount manufactured by MagnaChip. The manufacturer part number is MPMC100B120RH. The product is available in series configuration. The given dimensions of the product include 94 x 48 x 22mm. The product is available in panel mount configuration. Provides up to 694 w maximum power dissipation. The product has a maximum 100 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 22mm. Furthermore, the product is 48mm wide. Its accurate length is 94mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of 7dm-2. Whereas, the minimum operating temperature of the product is -55 °c. It has about 70khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 7 pins. The product offers series transistor configuration.

MPMC100B120RH, NPT & Rugged Type 1200V IGBT Module(Technical Reference)
