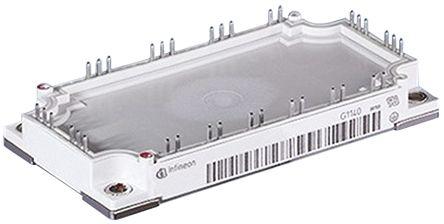

Infineon F12-25R12KT4G, ECONO3 Hex Bridge IGBT Module, 25 A max, 1200 V, PCB Mount

F12-25R12KT4G Infineon , ECONO3 Hex Bridge IGBT Module, 25 A max, 1200 V, PCB Mount
Infineon

Product Information

Dimensions:
122 x 62 x 17mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
160 W
Maximum Continuous Collector Current:
25 A
Maximum Collector Emitter Voltage:
1200 V
Configuration:
Hex Bridge
Height:
17mm
Width:
62mm
Length:
122mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
ECONO3
Minimum Operating Temperature:
-40 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
38
Transistor Configuration:
Hex Bridge
RoHs Compliant
Checking for live stock

This is ECONO3 Hex Bridge IGBT Module 25 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is F12-25R12KT4G. The given dimensions of the product include 122 x 62 x 17mm. The product is available in pcb mount configuration. Provides up to 160 w maximum power dissipation. The product has a maximum 25 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in hex bridge configuration. In addition, the height is 17mm. Furthermore, the product is 62mm wide. Its accurate length is 122mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of econo3. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 38 pins. The product offers hex bridge transistor configuration.

pdf icon
F12-25R12KT4G, IGBT-Module(Technical Reference)
