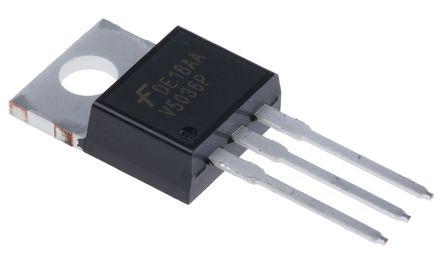

ISL9V5036P3_F085 Fairchild IGBT, 46 A 300 V, 3-Pin TO-220AA

Enrgtech Part No: ET13946563
|
Manufacturer Part No:
ISL9V5036P3_F085
|
Manufacturer: Fairchild Semiconductor

ISL9V5036P3_F085 Fairchild IGBT, 46 A 300 V, 3-Pin TO-220AA

Product Information

Dimensions:

10.67 x 4.7 x 16.3mm

Mounting Type:

Through Hole

Maximum Power Dissipation:

250 W

Maximum Continuous Collector Current:

46 A

Maximum Collector Emitter Voltage:

300 V

Height:

16.3mm

Width:

4.7mm

Length:

10.67mm

Maximum Gate Emitter Voltage:

±10V

Package Type:

TO-220AA

Minimum Operating Temperature:

-40 °C

Switching Speed:

1MHz

Checking for live stock

This is Fairchild IGBT 46 A 300 V 3-Pin TO-220AA manufactured by Fairchild Semiconductor. The manufacturer part number is ISL9V5036P3_F085. The given dimensions of the product include 10.67 x 4.7 x 16.3mm. The product is available in through hole configuration. Provides up to 250 w maximum power dissipation. The product has a maximum 46 a continuous collector current . Whereas features a 300 v of collector emitter voltage (max). In addition, the height is 16.3mm. Furthermore, the product is 4.7mm wide. Its accurate length is 10.67mm. It offers a maximum ±10v gate emitter voltage . The package is a sort of to-220aa. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

ISL9V5036S3S / ISL9V5036P3 / ISL9V5036S3, EcoSPARK 500mJ, 360V, N-Channel Ignition IGBT Data Sheet(Technical Reference)
