Category:
Power MOSFET
Dimensions:
5 x 5.85 x 1.05mm
Maximum Continuous Drain Current:
49 A
Transistor Material:
Si
Width:
5.85mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
120 V

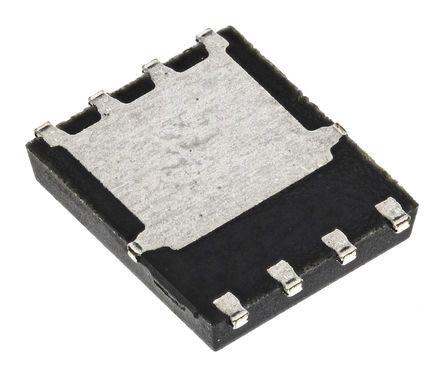

Package Type:
Power 56
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
32 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2056 pF @ 60 V
Length:
5mm
Pin Count:
8
Typical Turn-Off Delay Time:
27 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
104 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
1.05mm
Typical Turn-On Delay Time:
13 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
21.5 mΩ
HTSUS:
8541.29.0095
Package:
Bulk
Series:
*
DigiKey Programmable:
Not Verified
ECCN:
EAR99
