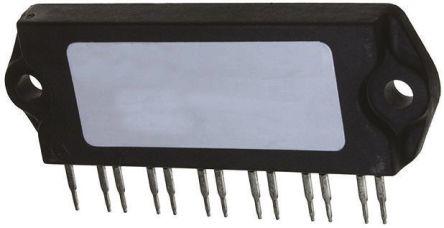

Vishay VS-CPV362M4UPBF, IMS-2 Common Collector IGBT Module, 7.2 A max, 600 V, Through Hole

VS-CPV362M4UPBF Vishay , IMS-2 Common Collector IGBT Module, 7.2 A max, 600 V, Through Hole
Vishay

Product Information

Configuration:
Common Collector
Dimensions:
62.43 x 7.87 x 21.97mm
Mounting Type:
Through Hole
Maximum Continuous Collector Current:
7.2 A
Maximum Collector Emitter Voltage:
600 V
Height:
21.97mm
Width:
7.87mm
Length:
62.43mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
IMS-2
Minimum Operating Temperature:
-40 °C
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
13
Transistor Configuration:
3 Phase
RoHs Compliant
Checking for live stock

This is IMS-2 Common Collector IGBT Module 7.2 A max 600 V Through Hole manufactured by Vishay. The manufacturer part number is VS-CPV362M4UPBF. The product is available in common collector configuration. The given dimensions of the product include 62.43 x 7.87 x 21.97mm. The product is available in through hole configuration. The product has a maximum 7.2 a continuous collector current . Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 21.97mm. Furthermore, the product is 7.87mm wide. Its accurate length is 62.43mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of ims-2. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 13 pins. The product offers 3 phase transistor configuration.

pdf icon
IGBT Module N-CH 7.2A 600V IMS-2(Technical Reference)
