Category:
Power MOSFET
Dimensions:
2.2 x 1.35 x 1mm
Maximum Continuous Drain Current:
2.6 A
Transistor Material:
Si
Width:
1.35mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V

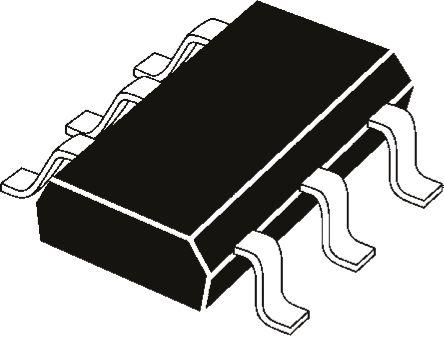

Package Type:
SOT-363
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.6V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
5.5 nC @ 4.5 V
Channel Type:
P
Typical Input Capacitance @ Vds:
470 pF @ -10 V
Length:
2.2mm
Pin Count:
6
Typical Turn-Off Delay Time:
27 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.78 W
Maximum Gate Source Voltage:
±12 V
Height:
1mm
Typical Turn-On Delay Time:
27 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
155 mΩ
